Allen & Heath AHM-16 16x16 Audio Matrix Processor with 8x8 I/O

SKU: E-1-1242

Brand:
Allen & Heath

Category:
Pro-Audio

Sub-Category:
Processors & Equalizers

Audio installers in search of an audio matrix processor for sound management and installation should look no further than the Allen & Heath AHM-16, an audio distribution, paging, conferencing, and speaker processing device, well suited for corporate, hospitality, education, event, and multipurpose venues, and retail, theaters, cruise ships, and sports venues.

PHP 78,500.00

Audio installers in search of an audio matrix processor for sound management and installation should look no further than the Allen & Heath AHM-16, an audio distribution, paging, conferencing, and speaker processing device, well suited for corporate, hospitality, education, event, and multipurpose venues, and retail, theaters, cruise ships, and sports venues.

The AHM-16 works with an expanded ecosystem of remote audio expanders, remote controllers, interfaces, apps, and software. Utilize the family of portable, rackmountable, or wallmountable audio expanders, available with a choice of proprietary point-to-point Layer-2 or Dante transport protocols. AHM works with a wide range of IP remote controllers for volume control, music source selection, preset recall, and more. You can also integrate with several 3rd party devices over GPIO, TCP/IP, or industry-standard control systems.

16x16 AUDIO MATRIX PROCESSOR

With an unrivalled price-performance ratio, AHM-16 delivers a 16x16 matrix with uncompromised processing for single room applications and smaller multi-room environments including bars, restaurants, shops and school halls.

  • 16x16 processing matrix
  • Sound management + installation
  • 8x8 local analogue I/O
  • Screen + 4 SoftKeys
  • I/O Port for audio networking, up to 128x128
  • Dante 96kHz option card
  • 16 configurable processing outputs
  • Automatic Mic Mixer

FEATURE LIST

  • 16x16 processing matrix
  • 8x8 local analogue I/O
  • I/O Port for audio networking, up to 128x128
  • Dante 96kHz option card (AES67 and DDM ready)
  • SLink 128x128 option card for audio expansion
  • 16 configurable processing outputs – mono / stereo zones or speaker processing
  • 96kHz FPGA core with ultra-low latency
  • Front panel screen and navigation
  • 4x SoftKeys
  • Compatible with IP1, IP6, IP8 remote controllers
  • 2x2 local GPIO plus networkable GPIO interface
  • TCP/IP protocol for third party integration
  • Crestron, AMX and Extron drivers
  • Mac / Windows System Manager software
  • Custom Control app and editor for BYOD
  • 4 user profiles
  • Integrated stereo playback
  • Event scheduler

ALWAYS IN CONTROL

In addition to remote controllers, GPIO and 3rd party integration, AHM-16 has a front panel screen and 4x programmable SoftKeys for intuitive volume control, source select, preset recall and more.

SOUND MANAGEMENT

Automatic Mic Mixer
ANC (Ambient Noise Compensation)
Priority Ducking
8-band PEQ, dynamics and delay on every input and zone
Speaker processing with x-over filter, delay, limiter and PEQ

General

Compatibility Not Specified by Manufacturer

Inputs / Outputs

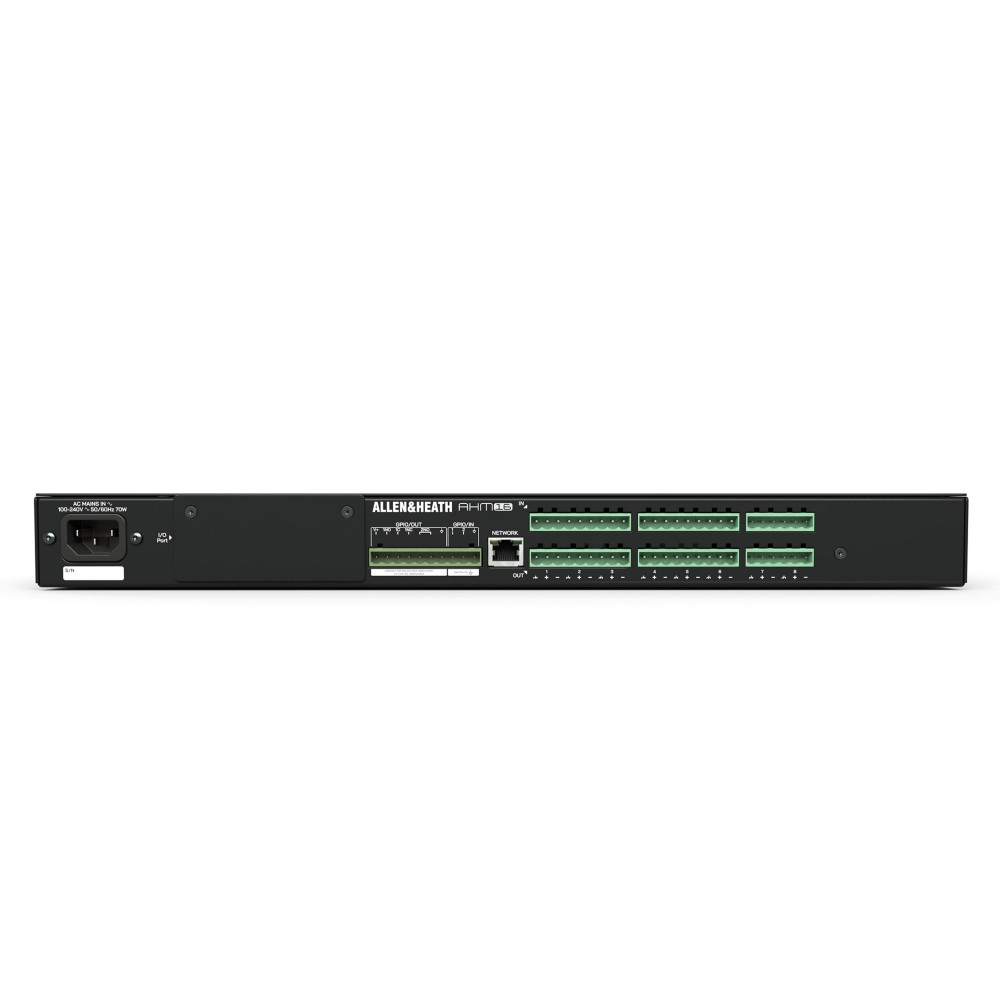

Audio I/O 8 x Block 3-Pin Line/Mic Input
8 x Block 3-Pin Line Output

Power

Power Source AC Input (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption: 65 W (Maximum)

Environmental
Operating Temperature 32 to 72°F / 0 to 40°C

Physical

Color: Black
Cable Length Not Specified by Manufacturer
Dimensions: 19 x 10.6 x 1.7" / 48.3 x 26.9 x 4.3 cm
Weight: 8.4 lb / 3.8 kg

Packaging Info

Package Weight: 11.875 lb
Box Dimensions: (LxWxH) 22.3 x 15.8 x 5.6"
