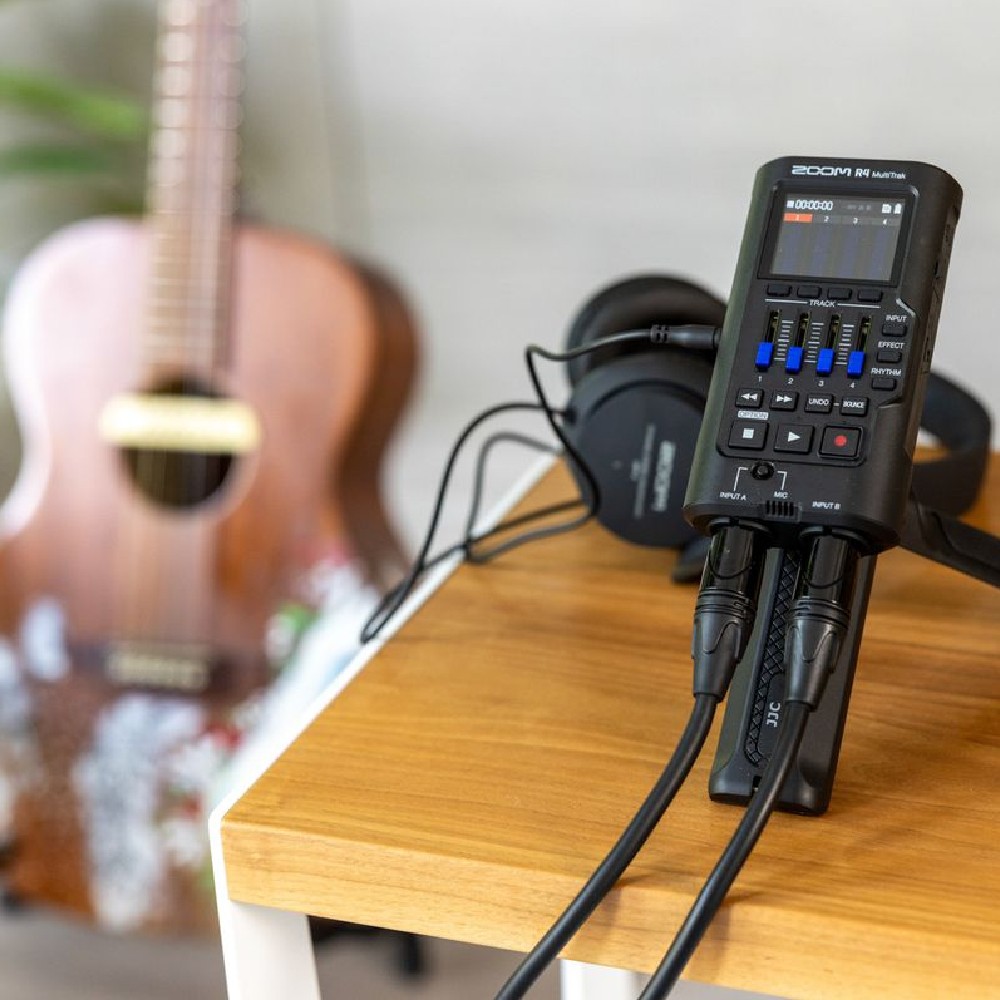

Zoom R4 Multi Track Recorder

SKU: E-2-767

Brand:
Zoom

Category:
Recording

Sub-Category:
Recording Interfaces

Designed By Musicians - All of the Zoom engineers are musicians and they designed the R4 to empower musicians to explore big ideas. With a unique dedicated ‘bounce track’ and 32-bit float recording, the R4 is perfect for capturing your most ambitious compositions.

PHP 14,800.00

PHP 11,100.00

Designed By Musicians

All of our engineers are musicians and they designed the R4 to empower musicians to explore big ideas. With a unique dedicated ‘bounce track’ and 32-bit float recording, the R4 is perfect for capturing your most ambitious compositions.

Record. Bounce. Repeat.

With the R4, you can record up to four tracks, mix and then bounce them to the dedicated ‘bounce track.’ This lets you free up additional tracks to keep adding layers.

You can choose to do a ‘quick’ bounce or mix and bounce in real time. The R4 also allows you to ‘undo’ your last bounce, if you’re not satisfied with the results.

32-Bit Float Recording

The R4 captures perfect audio with every take, without the need to set gain.

Combo Inputs

The R4 has 2 XLR/TS combo inputs with legendary Zoom preamps. You can plug in microphones, instruments, keyboards, and more.

Track Effects

Each track features a 3-band EQ, pan, echo, and reverb to refine your mix.

Input Effects

Apply effects to input A such as amp simulations, delays, distortions and more.

Built-In Microphone

The R4 features a high-quality built-in microphone, perfect for acoustic guitars, vocals, or capturing a quick reference recording.

Much More Than A Metronome

The R4 has a rhythm section preloaded with over 80 different drum patterns to play along with featuring genres such as rock, hip hop, funk, heavy metal, and more.

Every Take Is Saved

Tracks that you record are automatically saved individually, even after they have been bounced.

32-Bit Float Audio Interface

The R4 is also a powerful 2-in/ 2-out USB audio interface with 32-bit float technology. Connect it to either your computer or smartphone.

32-Bit Float Audio Interface

The R4 is also a powerful 2-in/ 2-out USB audio interface with 32-bit float technology. Connect it to either your computer or smartphone.

Powered For Your Ideas

The R4 can be powered by 4 AA Batteries, or through its USB-C port.

R4 Features

  • 4 Tracks of Recording + Dedicated Bounce Track
  • 2 XLR/TS combo inputs for guitar, bass, keyboards, microphones and more
  • Built-in Omnidirectional Microphone
  • Dual AD circuitry with 32-bit float recording technology
  • Color LCD Display
  • Built-in effects including EQ, Reverb, Compression, and Guitar effects
  • 4 Faders for Volume Control
  • USB Audio Interface Function
  • Runs on 4 AA batteries or external USB-C battery

Specs

INPUTS / OUTPUTS

INPUTS

  • Built-in mic (mono): 1
  • XLR/TS inputs (mono): 2

OUTPUT

  • Headphones: 1

Inputs

XLR/TRS INPUTS

  • Connectors: 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT)
  • Input gain: No adjustment required (dual A/D converter circuit used)
  • Input impedance: XLR: 2.3 kΩ
  • TS: 1 MΩ
  • Maximum input level: XLR: +4 dBu
  • TS: +10 dBu
  • Phantom power: +48 V (switchable separately for INPUTS A and B)
  • Equivalent input noise: XLR: −120 dBu or less (IHF-A)
  • TS: −107 dBu or less (IHF-A)
  • Frequency response: XLR: -0.5 /+0.0 dB : 20 Hz - 20 kHz
  • TS: -0.2 /+0.0 dB : 20 Hz - 20 kHz

BUILT-IN MIC INPUT

  • Directionality: Omnidirectional
  • Input gain: No adjustment required (dual A/D converter circuit used)
  • Maximum sound pressure input: 115 dB SPL

Output

HEADPHONES

  • Connector: 1 stereo 3.5mm mini jack
  • Output impedance: 10 Ω
  • Maximum output level: 20 mW + 20 mW (into 32Ω load)

Recorder

  • Maximum simultaneous recording tracks: 2
  • Recording format: WAV: 48kHz, 32-bit float, mono
  • Recording media: Cards compatible with microSDHC specifications 4 GB – 32 GB
  • Cards compatible with microSDXC specifications 64 GB – 1 TB

Display

  • 2-inch full-color LCD (240 × 320)

USB

CONNECTOR

  • USB Type-C
  • Note: Use a USB cable that supports data transfer. USB bus power is supported.

AUDIO INTERFACE FUNCTION

  • Class: USB 2.0 High Speed
  • Sampling frequency: 48 kHz
  • Bit rate 24-bit/32-bit float
  • Input / output channels: 2 in/2 out

MASS STORAGE FUNCTION

  • USB2.0 High Speed

Power supply

  • Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)
  • AC adapter: ZOOM AD-17 (5V/1.0A)
  • USB bus power is supported.
  • Estimated continuous operation time using batteries
  • Alkaline batteries: about 7 hours
  • NiMH batteries (1900 mAh): about 6 hours
  • Lithium batteries: about 14 hours
  • Use conditions: Recording 1 track, playing 1 track, phantom power off, headphones into 32Ω load, power saving on
  • The above values are approximate. * Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
  • Power consumption: 5 W
  • External dimensions: 74 mm (W) × 138 mm (D) × 36 mm (H)
  • Weight (including batteries): 287 g
  • Note: 0 dBu = 0.775 Vrms
