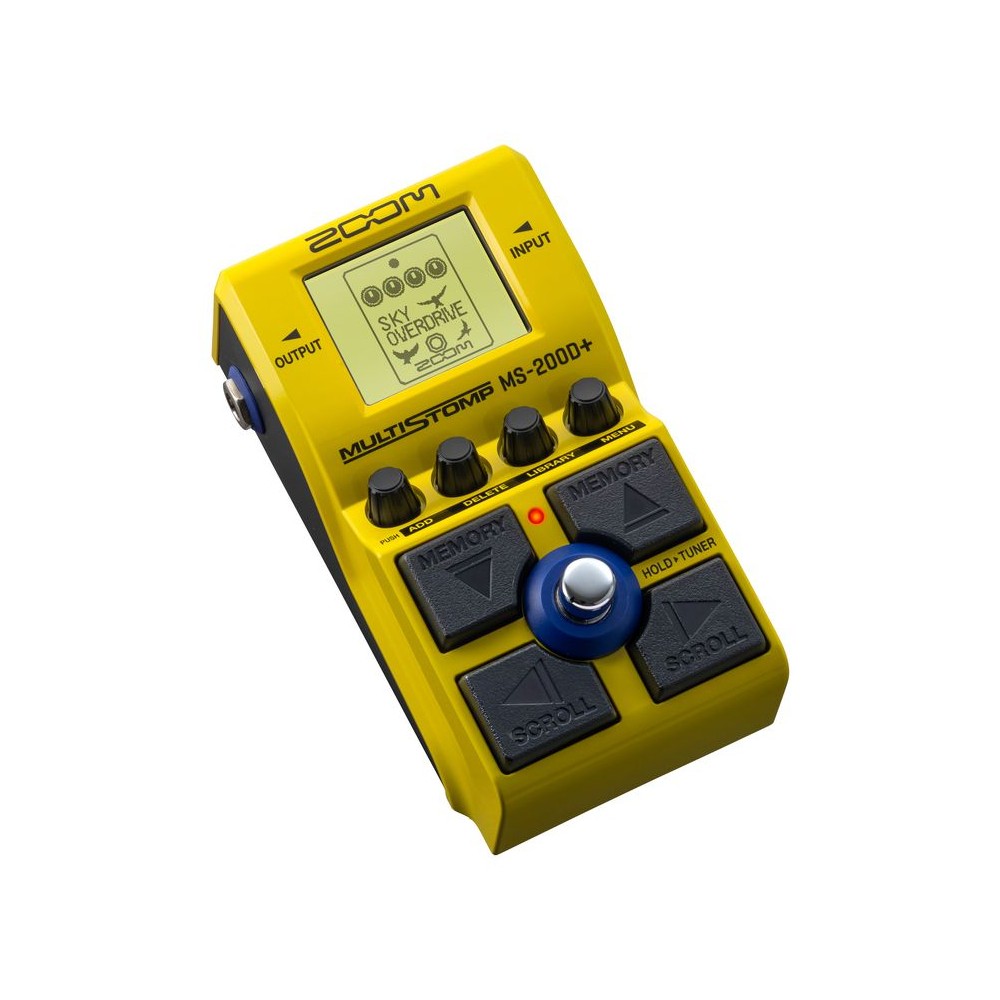

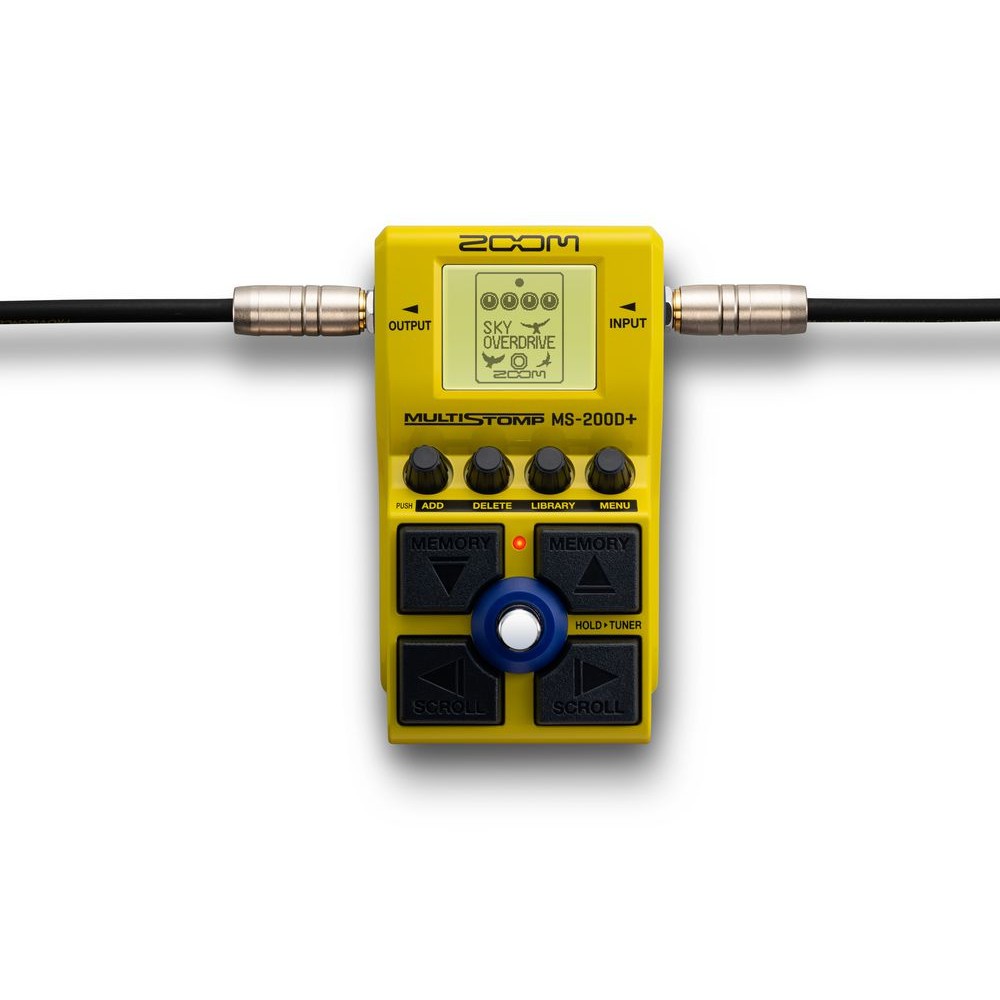

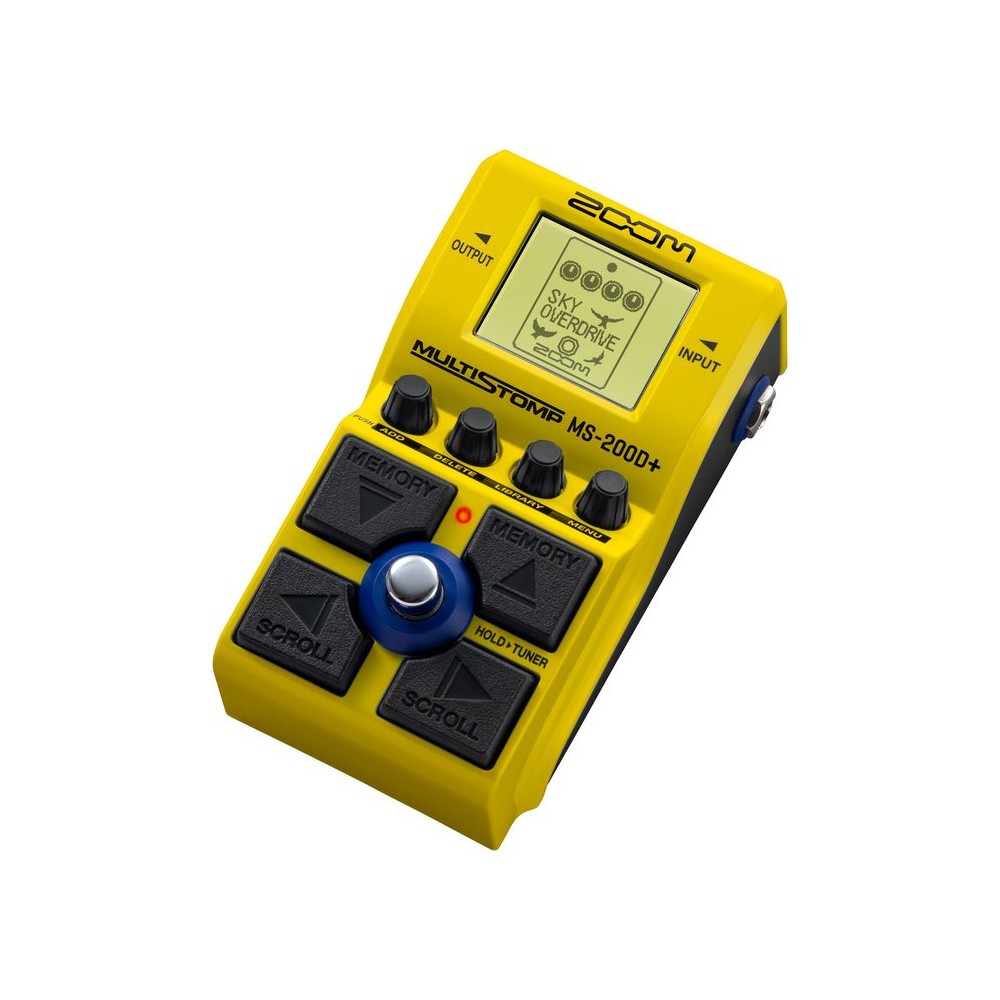

Zoom MS-200D+ MultiStomp Guitar Effects Pedal Drives and Distortion

SKU: E-2-793

Brand:
Zoom

Category:
Effects & Pedals

Sub-Category:
Guitar Effects

New Zoom Originals And Much, Much More - The MS-200D+ features 164 all-new originals plus 36 emulations of classic tones that cover overdrives, distortions, boosts, fuzz, and more.

PHP 10,000.00

PHP 9,000.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

New Zoom Originals And Much, Much More

The MS-200D+ features 164 all-new originals plus 36 emulations of classic tones that cover overdrives, distortions, boosts, fuzz, and more.

Create Your Own Distortions

With up to 250 custom patches, you can create unique distortions by chaining any two effects together. With Effect Routing chain effects in series, parallel, or alternate for the ability to quickly switch between two tones.

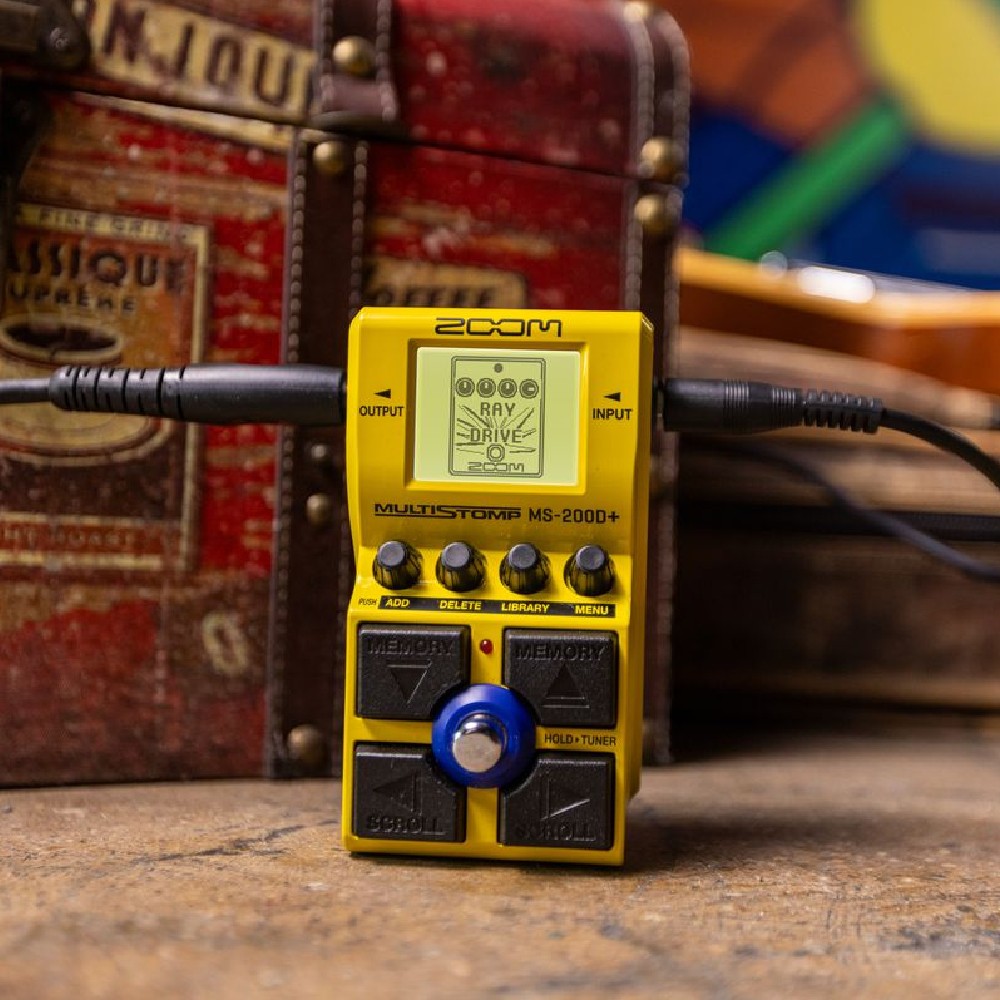

Color Changing Display

The LCD screen changes color, making it easier to distinguish each drive and distortion type while scrolling.

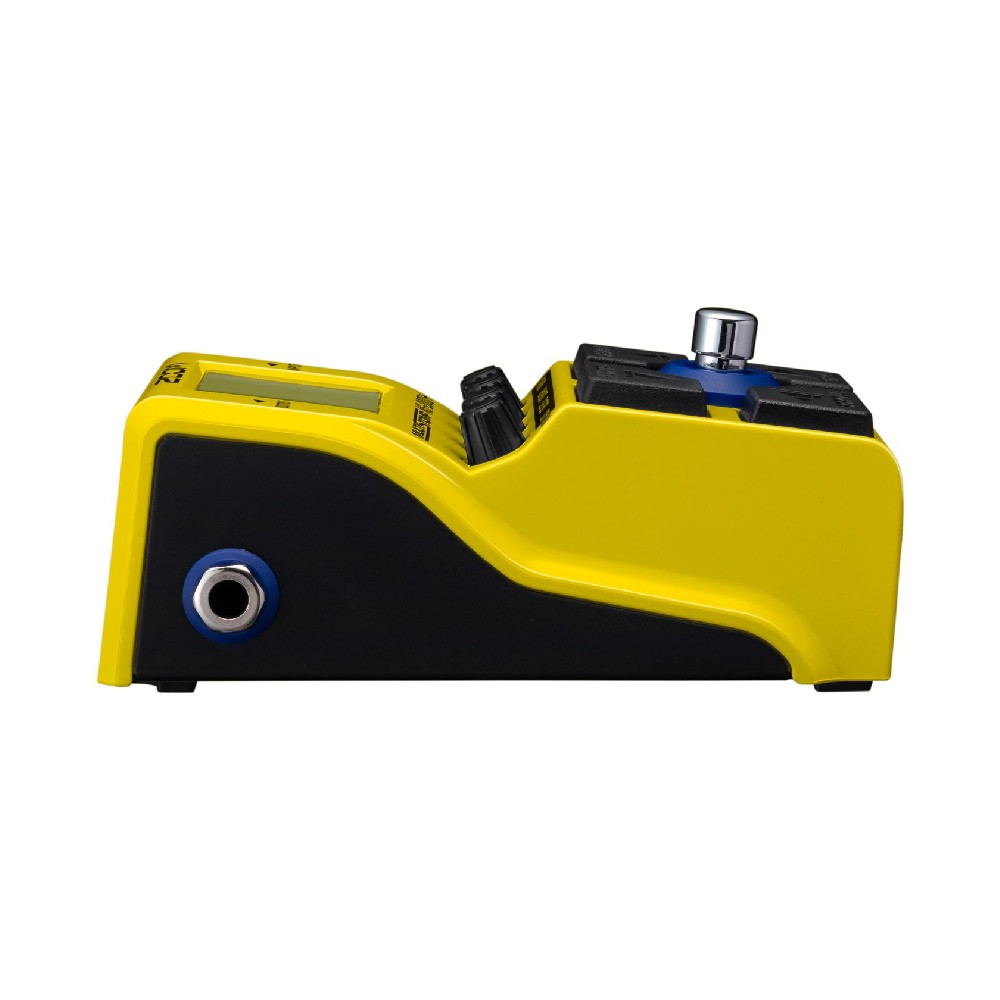

Solid Body

The MS-200D+ is built with a metal frame designed to withstand anything you throw at it.

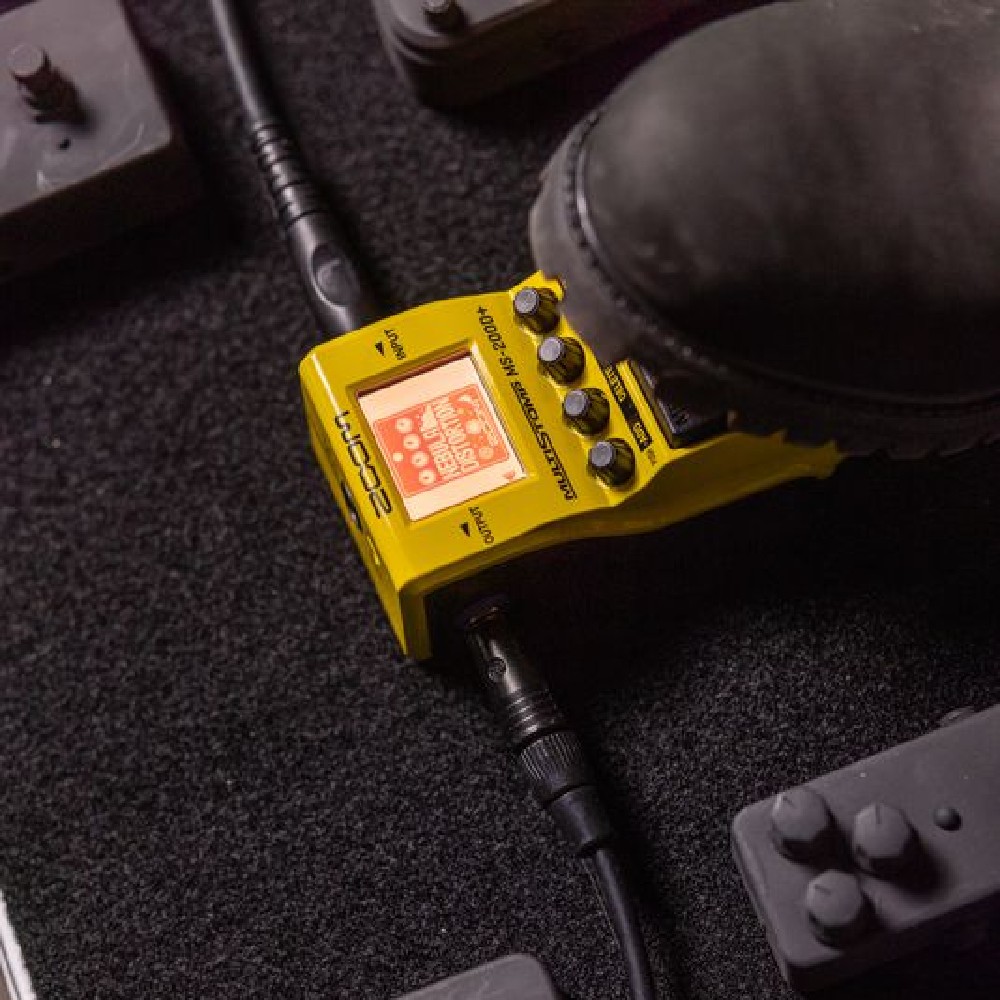

Cross Key Switches

The Cross Key switches allow you to instantly switch between effects with a tap of your foot.

Tweak On

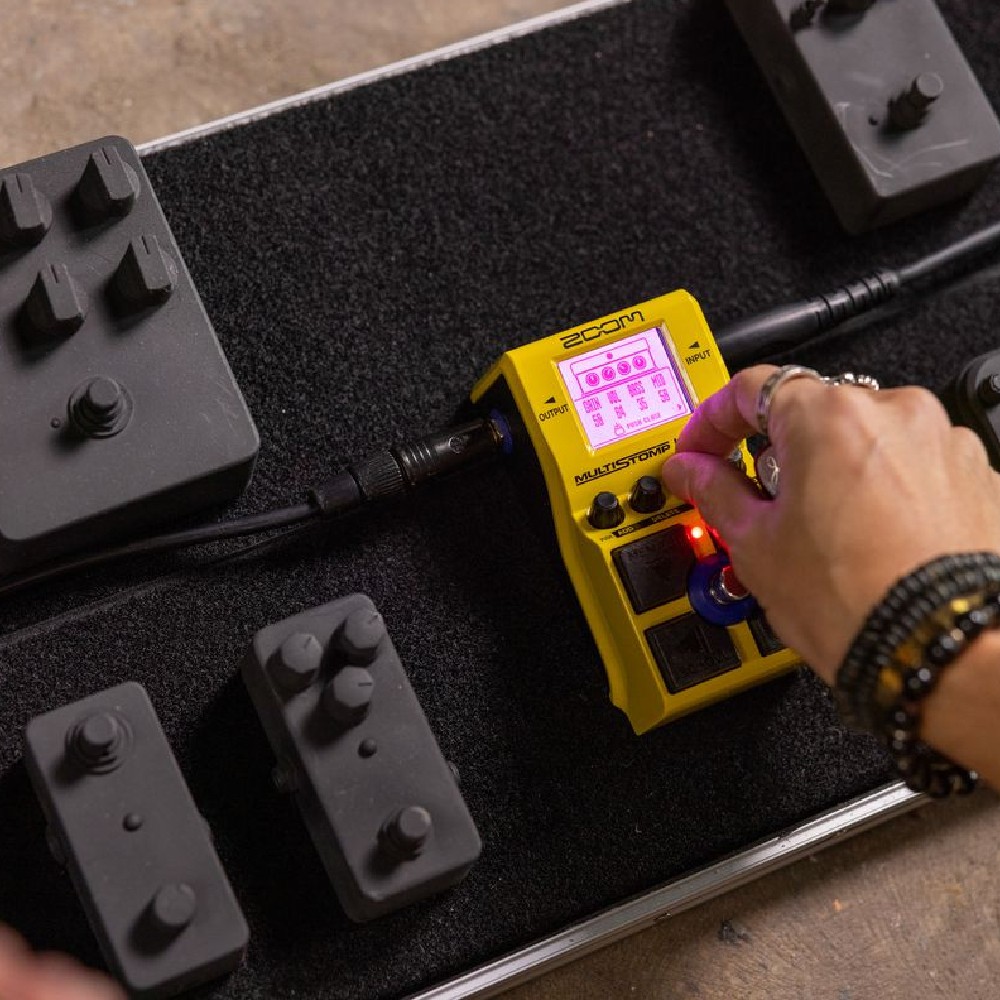

Adjusting and tweaking parameters for each drive and distortion can be done with the four encoder knobs.

Stay Tuned

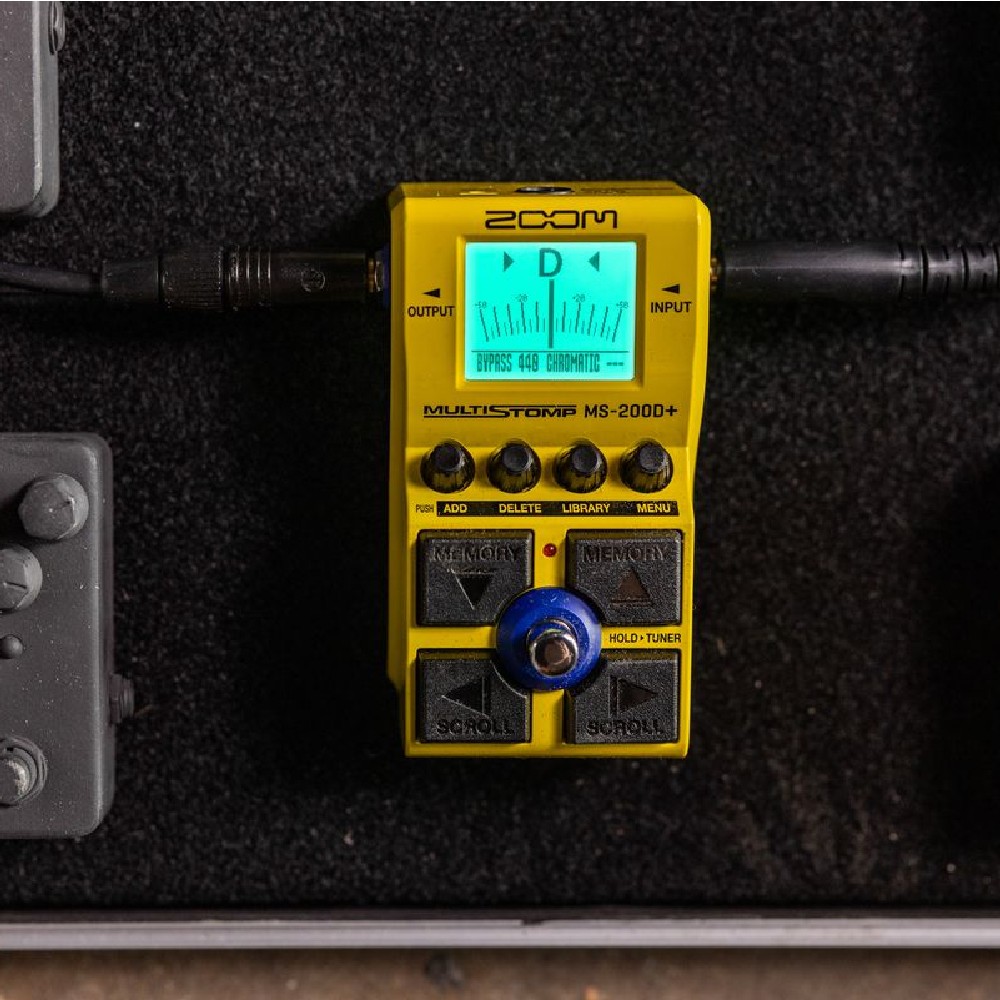

The onboard chromatic tuner uses the color backlight to give visual feedback to help you tune quickly and accurately. It supports all standard guitar tunings as well as open & drop tunings.

Handy Guitar Lab

With a growing library of patches and drives & distortions, guitarists can continue to expand their sound with the Handy Guitar Lab app for iOS*.

MS-200D+

  • 200 built-in distortions and drives from Zoom’s latest generation of effects, including 152 new Zoom Original drives/distortions, 36 boutique emulations, & 12 existing Zoom drives/distortions.
  • Use up to 2 effects at the same time (i.e. Booster + Drive)
  • Single stompbox design
  • 4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
  • Runs on 2 AA batteries or AC Adapter
  • Chromatic tuner supports all standard guitar tunings, including open & drop tunings
  • Handy Guitar Lab App for iOS

Specs

  • Maximum number of simultaneous effects: 2 effects
  • User patch memories; 250
  • Sampling frequency: 44.1 kHz
  • A/D conversion: 24-bit 128× oversampling
  • D/A conversion: 24-bit 128× oversampling
  • Signal processing: 32-bit
  • Frequency response: 20 Hz – 20 kHz (+0.5 dB/−0.5 dB) (when 10kΩ load)
  • Display: 160 × 128 dot-matrix LCD
  • Input: Standard mono phone jack
  • Rated input level: −20 dBu
  • Input impedance (line): 470 kΩ
  • Outputs L/R: Standard mono phone jacks
  • Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
  • Input S/N: 122 dB
  • Noise floor (residual noise) L/R: –100 dBu

Power

  • AC adapter - 9V DC 500mA center negative (ZOOM AD-16)
  • 2 AA batteries: Alkaline, Lithium or rechargeable NiMH batteries
  • USB bus power is supported.

Estimated operation times using batteries:

  • Alkaline batteries: About 7 hours
  • NiMH batteries (1900 mAh): About 6.5 hours
  • Lithium batteries: About 14 hours

These values are approximate. Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

  • USB Port: USB 2.0 Type-C
  • Supported cable type: Type-C
  • Handy Guitar Lab: USB1.1 Full Speed
  • Use a USB cable that supports data transfer.

  • Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
  • Weight: 346 g (excluding batteries) 393 g (including batteries)
