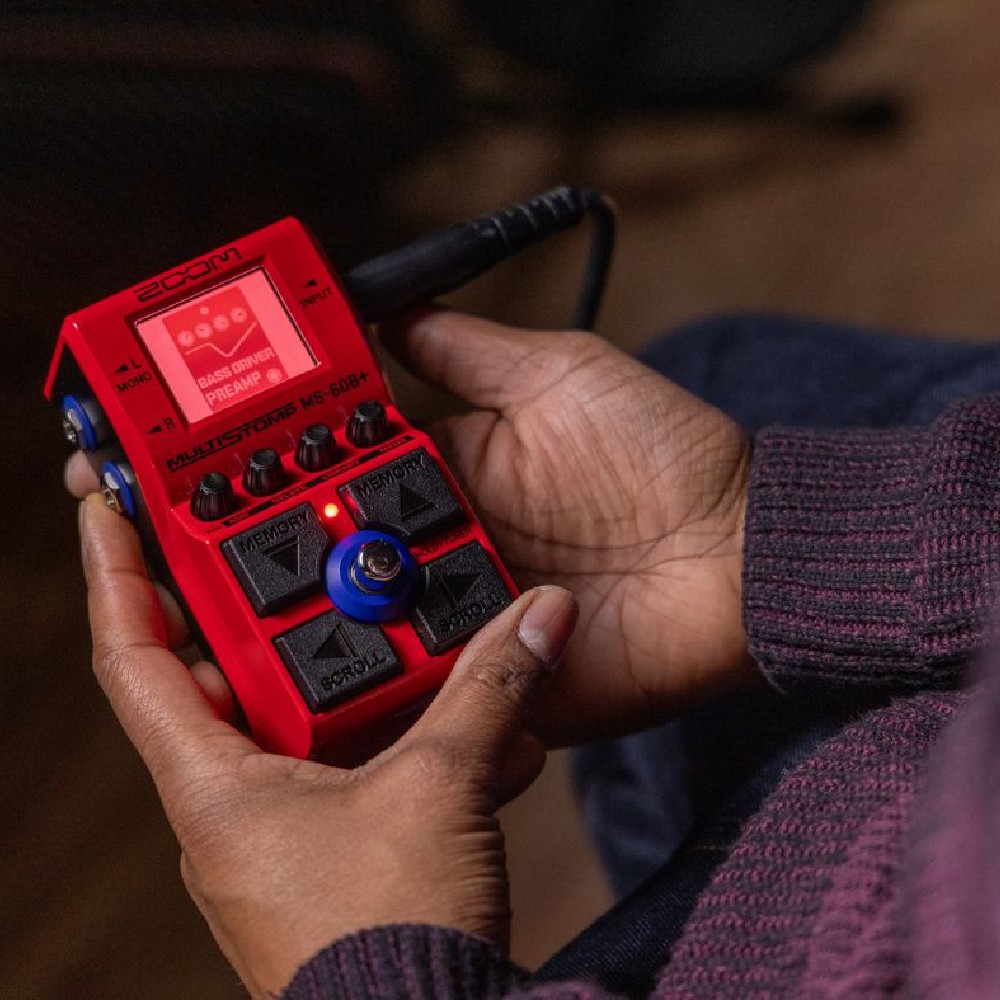

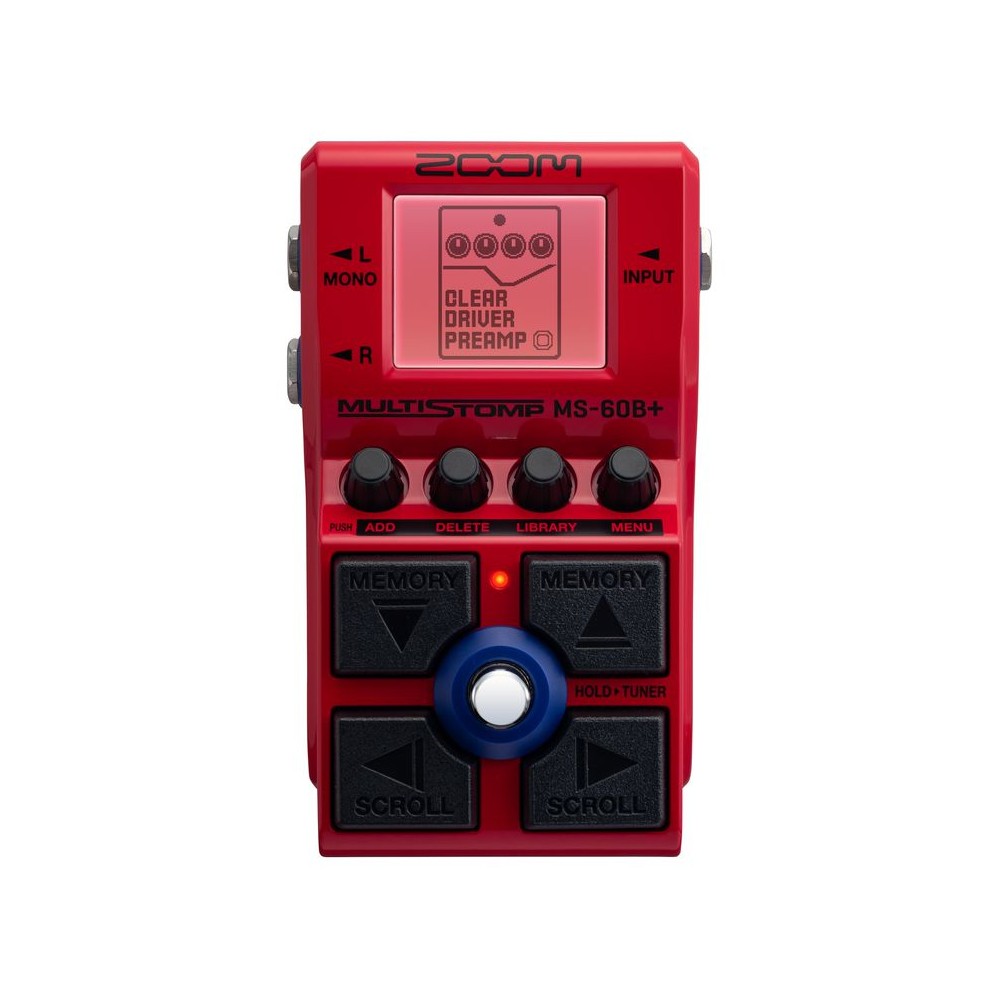

Zoom MS-60B+ MultiStomp Bass Guitar Effects Pedal

SKU: E-2-794

Brand:
Zoom

Category:
Effects & Pedals

Sub-Category:
Bass Guitar Effects

The ZOOM MS-60B+ MultiStomp for Bass. The MS-60B+ is designed to help bassists craft the perfect low-end tone. It features realistic amp models, recreations of renowned preamps and a wide range of effects.

PHP 10,000.00

PHP 7,500.00

11 Sound Shaping Preamps

Boost and shape your sound with 8 of the world’s most popular preamps plus 3 Zoom originals to help you drive the groove in any genre.

Amps Played by Legends

Channel the powerful clean tone of the Acoustic 370* amp model, or stand out with the warm punchy tone of an Ampeg SVT*. The MS-60B+ faithfully reproduces 11 classic amps and cabinets using our Multi-layer IR technology.

Get Your Freq On

Transform your sound with 75 effects that span from octaves, filters, modulations, synths, drives and more.

Come Together

Mix and match up to 6 effects, amp models, and preamps to build the perfect bass rig. Or, explore the history of bass with 85 presets based on famous songs from the 60’s to today.

Split It

The MS-60B+ allows you to split output signals. This allows you to output with Amps/IR’s to a PA, while simultaneously outputting without Amps/IR’s to your amplifier.

Next Generation Circuitry

The MS-60B+ is designed with new high-fidelity analog circuits. The flat phase response provides sharp attacks and clean low end, giving the pedal more refined tonal characteristics.

Change Patches with MIDI

With USB MIDI, you can connect the MS-60B+ to other MIDI gear to remotely trigger patch changes.

Control Knobs

Fine-tuning and adjusting amp models and effects can be done with the four encoder knobs.

Cross Key Switches

The Cross Key switches allow you to easily switch between effects and patches with a tap of your foot.

Tune Up

The onboard chromatic tuner uses the color backlight to give visual feedback to help you tune quickly and accurately. It supports all standard bass guitar tunings, including drop tunings.

Specs

  • Maximum number of simultaneous effects: 6 effects
  • User patch memories: 100
  • Sampling frequency: 44.1 kHz
  • A/D conversion: 24-bit 128× oversampling
  • D/A conversion: 24-bit 128× oversampling
  • Signal processing: 32-bit
  • Frequency response: 20 Hz – 20 kHz (+0.5 dB/−0.5 dB) (when 10kΩ load)
  • Display: 160×128 dot-matrix LCD
  • Input: Standard mono phone jack
  • Rated input level: −20 dBu
  • Input impedance (line): 470 kΩ
  • Outputs L/R: Standard mono phone jack
  • Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
  • Input S/N: 122 dB
  • Noise floor (residual noise) L/R: –100 dBu

Power

  • AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
  • 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)

Estimated operation times using batteries

  • Alkaline batteries: about 7 hours
  • NiMH batteries (1900 mAh): about 6.5 hours
  • Lithium batteries: about 14 hours

These values are approximate. Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

  • USB Port: USB 2.0 Type-C
  • Supported cable type: Type-C
  • Handy Guitar Lab: USB 1.1 Full Speed
  • Use a USB cable that supports data transfer. USB bus power is supported.
  • Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
  • Weight: 353 g (excluding batteries) 400 g (including batteries)
