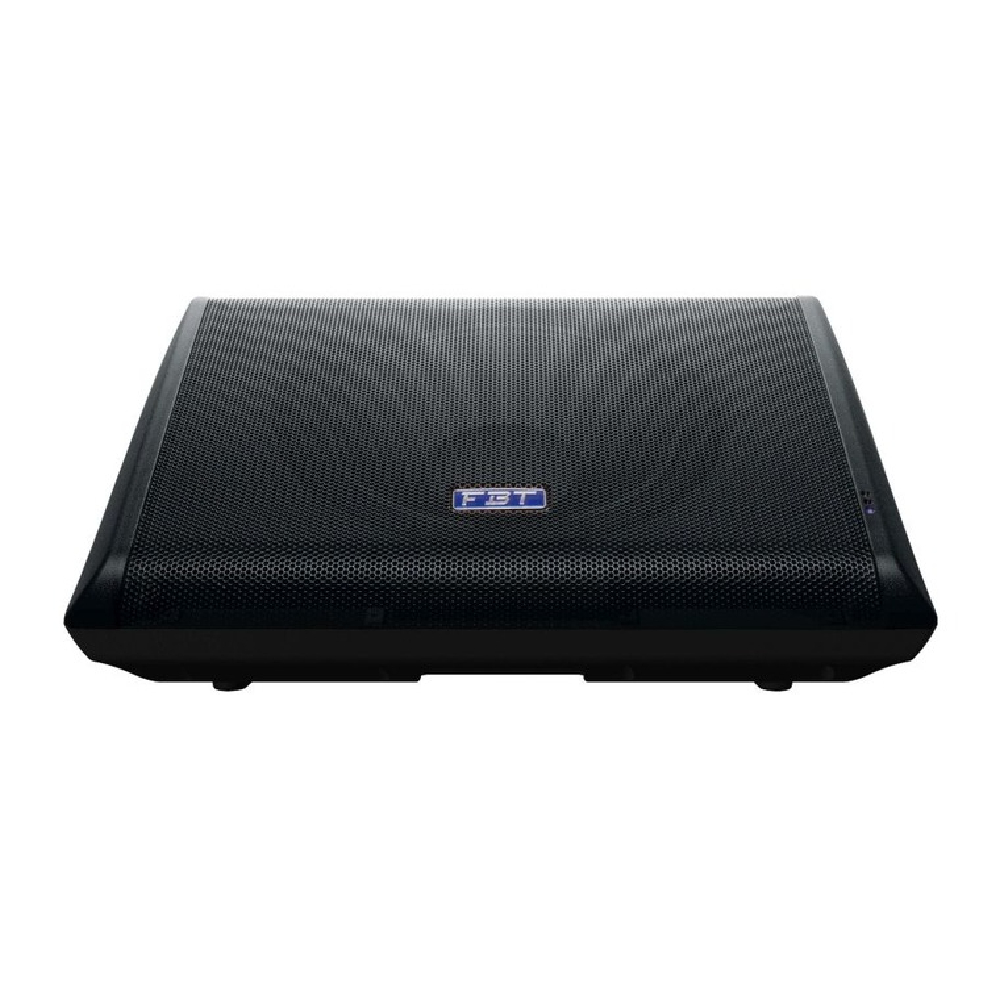

FBT Stagemaxx 12MA 12” Active Stage Monitor 400w + 100w Speaker

SKU: E-5-1155

Brand:
FBT

Category:
Pro-Audio

Sub-Category:
Speakers

The StageMaxX 12 MA is a Processed Active Reinforcement Stage Monitor. Featuring a 400W + 100W RMS amp module delivering 130dB SPL. inside we have a Coaxial custom FBT 12” B&C speakers with 64mm (2.5”) voice coil with a B&C 25mm (1”) exit throat compression driver and 44mm (1.7”) voice coil, outside we have a sturdy gas-injected polypropylene molded enclosure to avoid undesired resonance. All proudly made in Italy. Black finish

PHP 75,500.00

PRODUCT DESCRIPTION

·         Processed Active Reinforcement Monitor

·         400W + 100W RMS – 130dB SPL

The 4 presets are:

·         ORIGINAL: is the typical “MaxX” sound adapted to “STAGE” application

·         HI-CUT / DRUM FILL: provides less mid-high for a comfortable listening in near-field at high level

·         LO-CUT / DOUBLE: provides less low frequency for better intelligibility and for optimal coupling in stereo configuration

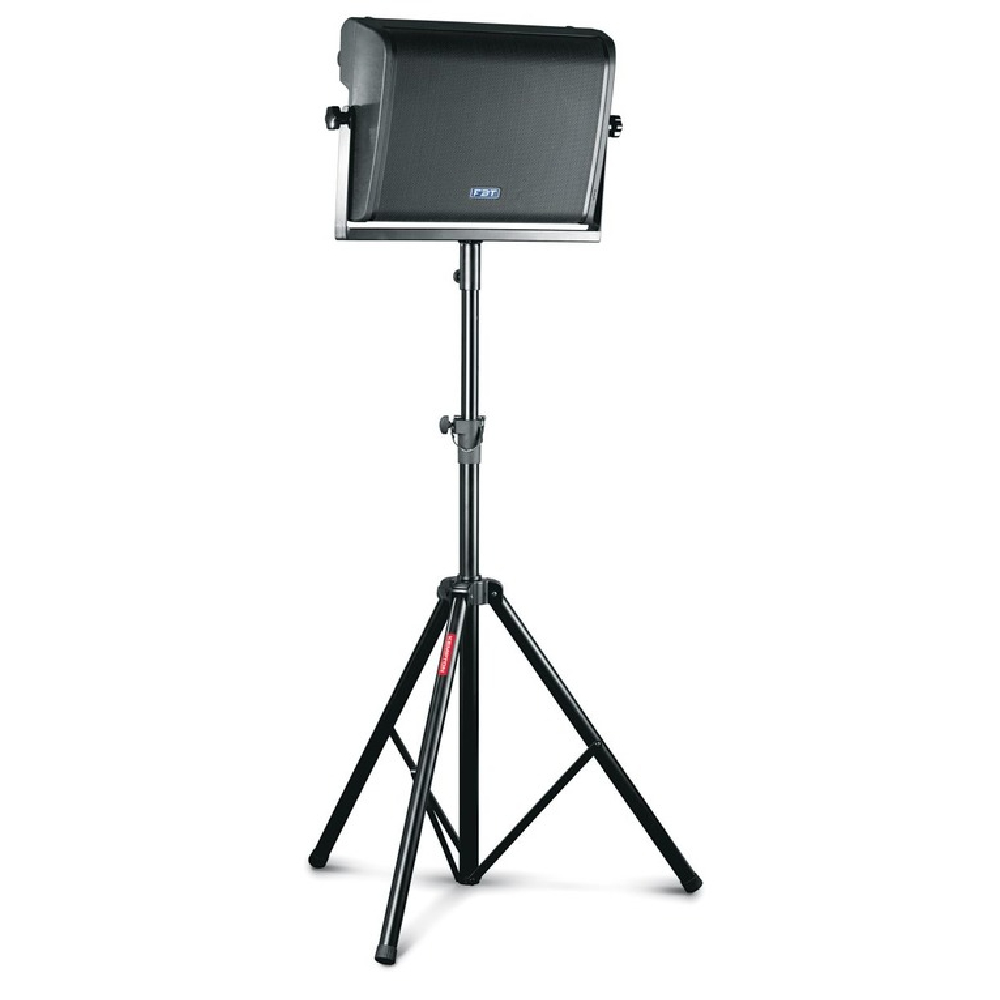

·         FOH: Front Of House use in suspended or pole-mount installations

MaxX More! The new stage monitor without compromise

 FBT’s new StageMaxX 12Ma has been inspired by the need to have a product specifically designed and engineered for use as stage monitor, overcoming all these compromises for a full user satisfaction.

·         Low profile and aesthetic elegance

·         Compact size

·         Frequency response studied for stage monitor applications

·         High headroom before feedback

·         High sound quality

·         Great power and dynamics

·         Symmetric dispersion

·         Aligned LF and HF acoustic centers

·         Easy handling on stage

·         Lightweight

·         Heavy-duty polypropylene cabinet

Specification

·         Configuration:   2 Way

·         Frequency response:     60hz - 20 kHz

·         Low frequency woofer: 12"

·         High frequency driver:   1"

·         Maximum SPL cont/peak:            124 / 130dB

·         Dispersion:         90 x 90 (HxV)

·         Input impedance:            22kohm

·         Crossover frequency:    1.8kHz

·         Input connector:              XLR with link out

·         Net Dimension (WxHxD):             550 x 289 x 392mm

·         Net Weight:       13.6 kg

·         Transport Dimension (WxHxD): 670 x 430 x 500mm

·         Transport Weight:           16.4kg

·         AC Power requirements:              450VA

·         Built-in amplifier LF/HF: 400/100w RMS

·         Built-in amplifier peak LF/HF:      800/200w

·         Power cord:       5m PowerCon True1
