Specifications
Frequency range 470.2 - 526 MHz
THD, total harmonic distortion ≤ -60 dB for 1 kHz @ -3 dBfs input level
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
System Latency 1.9 ms
Operating relative humidity
5 - 95 % (non-condensing)
EW-D EM
Dimensions 212 x 44 x 189 mm
Weight approx. 1000 g (without antennas and power supply)
Current consumption ≤ 300 mA
Input voltage range 11 - 13 V ⎓
Audio output level 18 dBu max.
Transmission power
BLE: max. 10 mW EIRP ME 3
Connector 3.5 mm jack
Frequency response 50 to 18,000 Hz
Max. sound pressure level150 dB
Cable length approx. 1.60 m
Pick-up pattern cardioid
Sensitivity in free field, no load (1kHz) 1.6 mV/Pa
Transducer principle pre-polarized condensor microphone
EW-D SK
Dimensions
63 x 80 x 20 mm (without antenna)
Weight
approx. 120 g
Power supply
2 AA batteries 1.5 V (alkaline manganese)
or BA 70 rechargeable battery pack
Current consumption
< 300 mA
Input voltage range
2.0 - 4.35 V
Transmission power
Audio link: 10 mW
ERP (Range Y1-3): 12 mW ERP
BLE: max. 10 mW EIRP

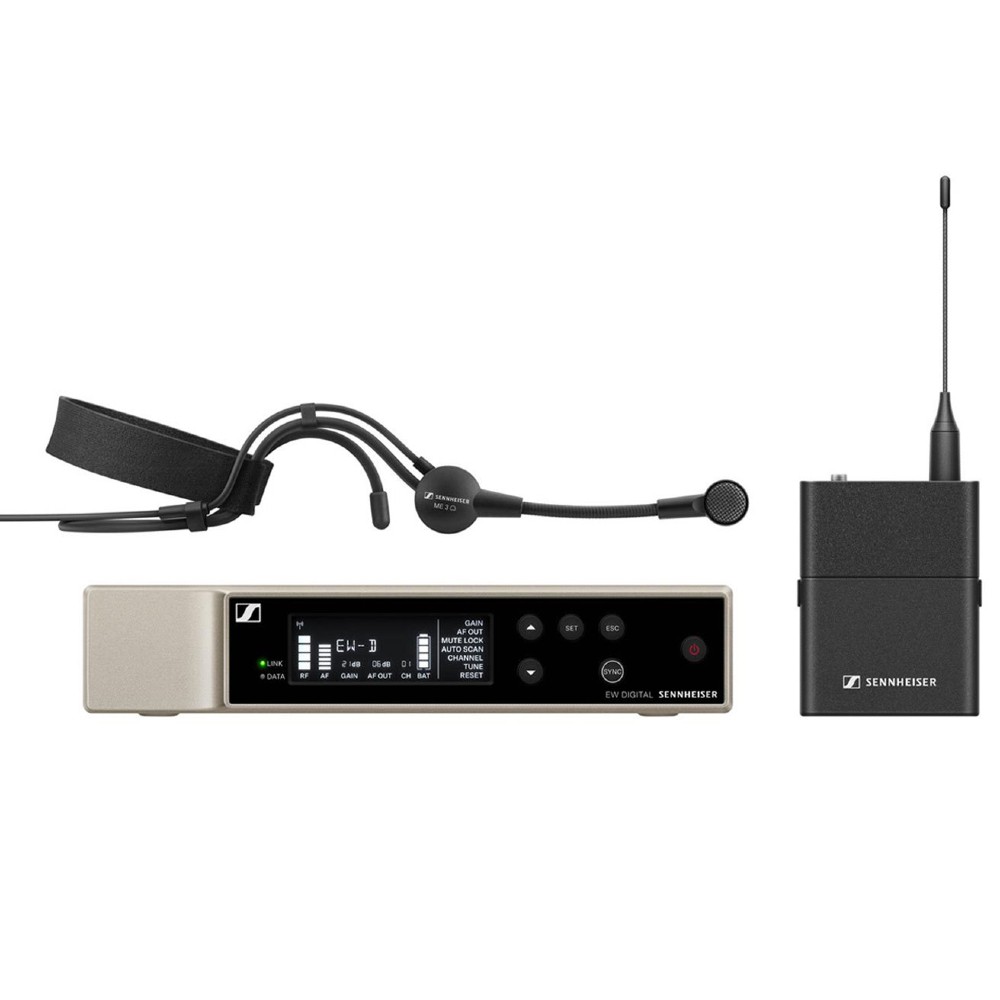

What's in the Box:
EW-D EM rack receiver
EW-D SK bodypack transmitter
ME 3 headset microphone (cardioid)
2 rod antennas
power supply with country adapters
rackmount set
4 rubber feet
quick guide
safety guide
manufacturer declaration sheet
