SPECIFICATIONS
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Cardioid
Frequency Response 30-20,000 Hz
Open Circuit Sensitivity -40 dB (10.0 mV) re 1V at 1 Pa
Impedance 130 ohms
Maximum Input Sound Level 140 dB SPL

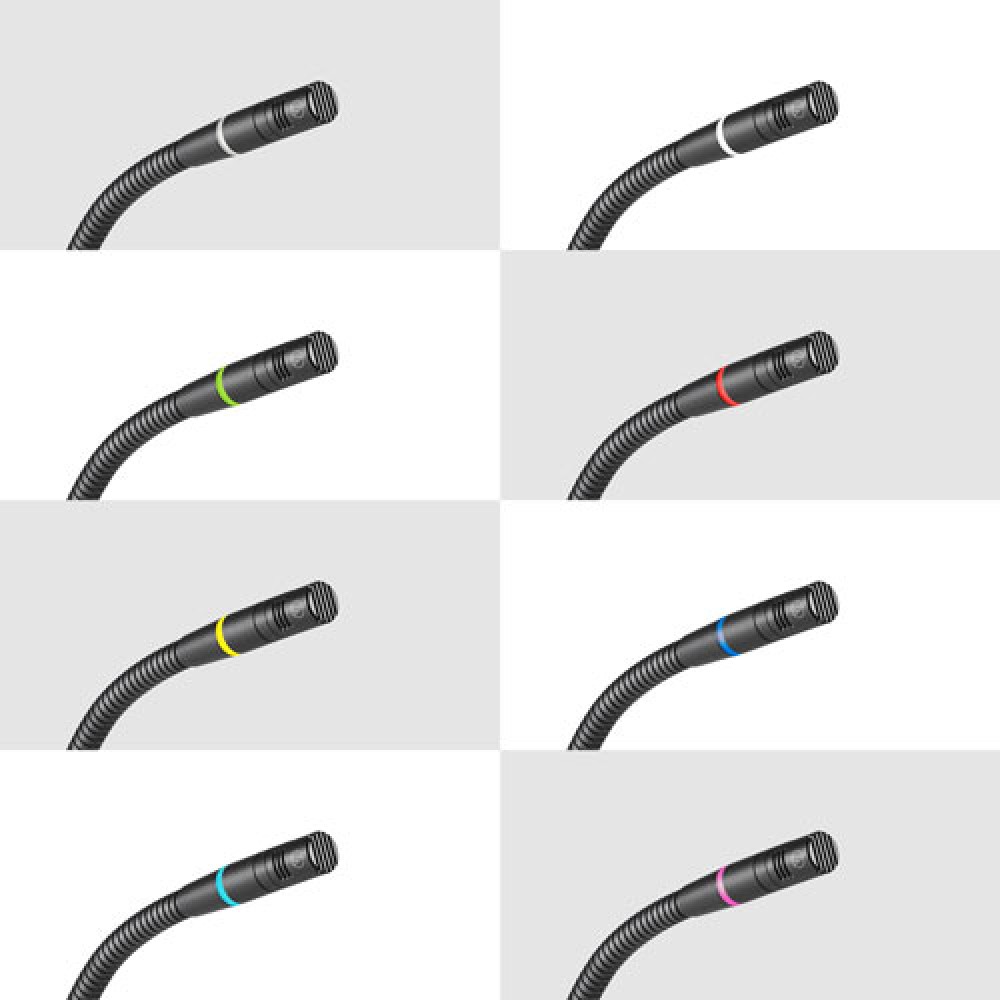

Switches LED Color
Dynamic Range 112 dB
Signal-to-Noise Ratio 66 dB
Phantom Power Requirements 11-52V DC
Weight
ES925C6/XLR: 102.0 g
ES925C12/XLR: 126.0 g
ES925C15/XLR: 131.0 g
ES925C18/XLR: 136.0 g
ES925C21/XLR: 141.0 g
ES925C24/XLR: 146.0 g

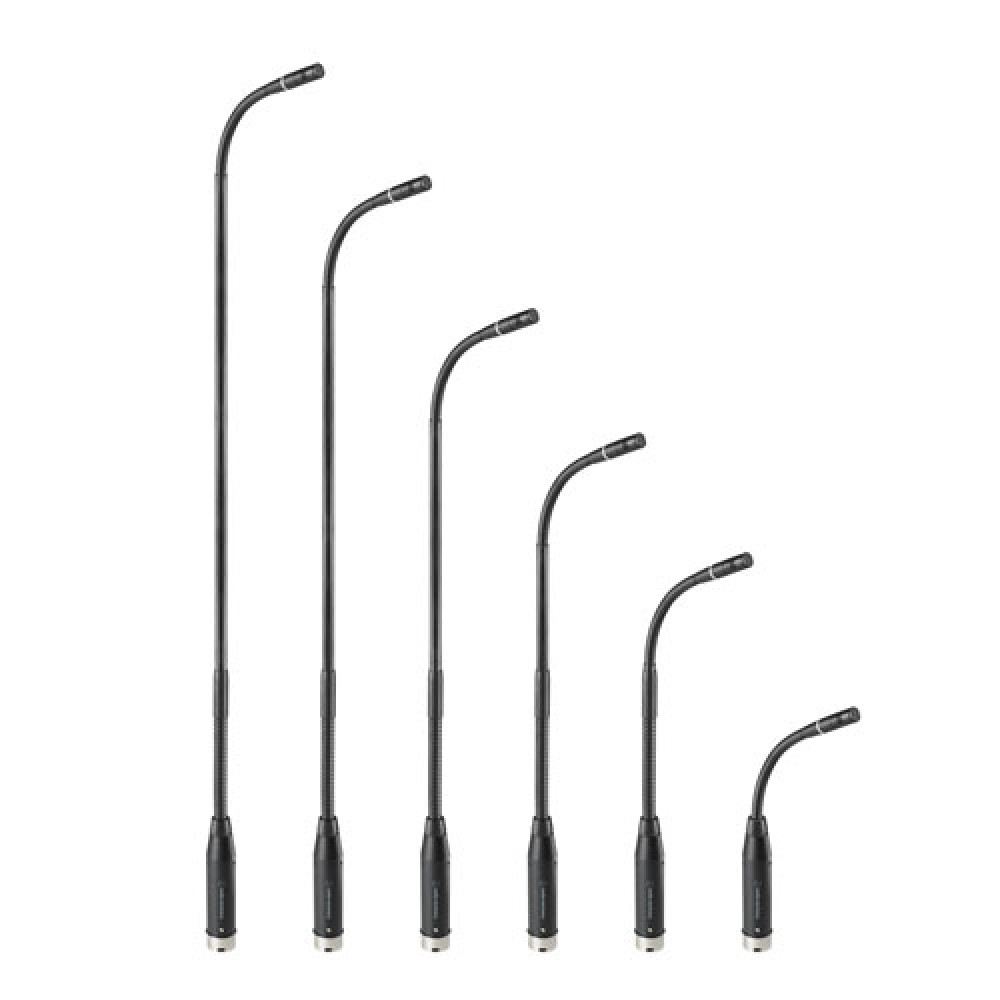

Dimensions
ES925C6/XLR: 20.2 mm diameter, 197.4 mm height
ES925C12/XLR: 20.2 mm diameter, 304.8 mm height
ES925C15/XLR: 20.2 mm diameter, 381.0 mm height
ES925C18/XLR: 20.2 mm diameter, 457.2 mm height
ES925C21/XLR: 20.2 mm diameter, 533.4 mm height
ES925C24/XLR: 20.2 mm diameter, 609.6 mm height

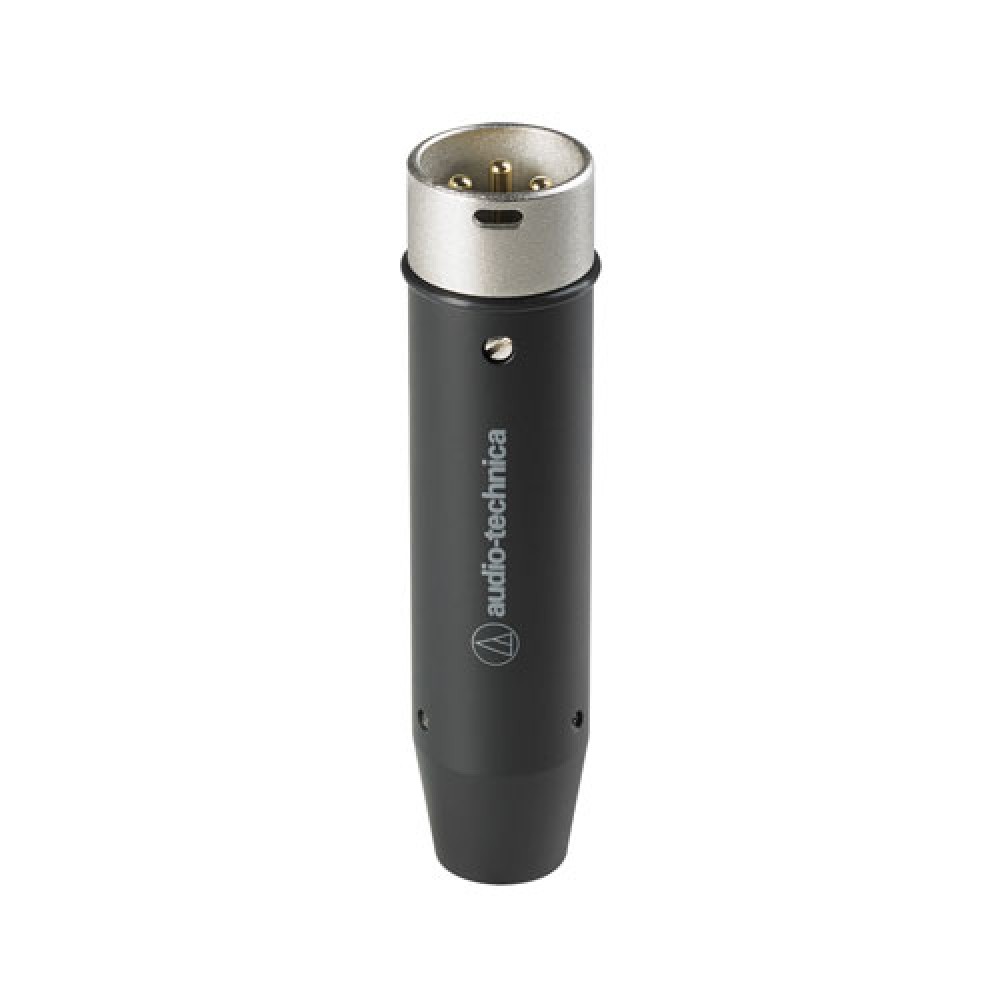

Output Connector Integral 3-pin XLRM-type
Audio-Technica Case Style M43

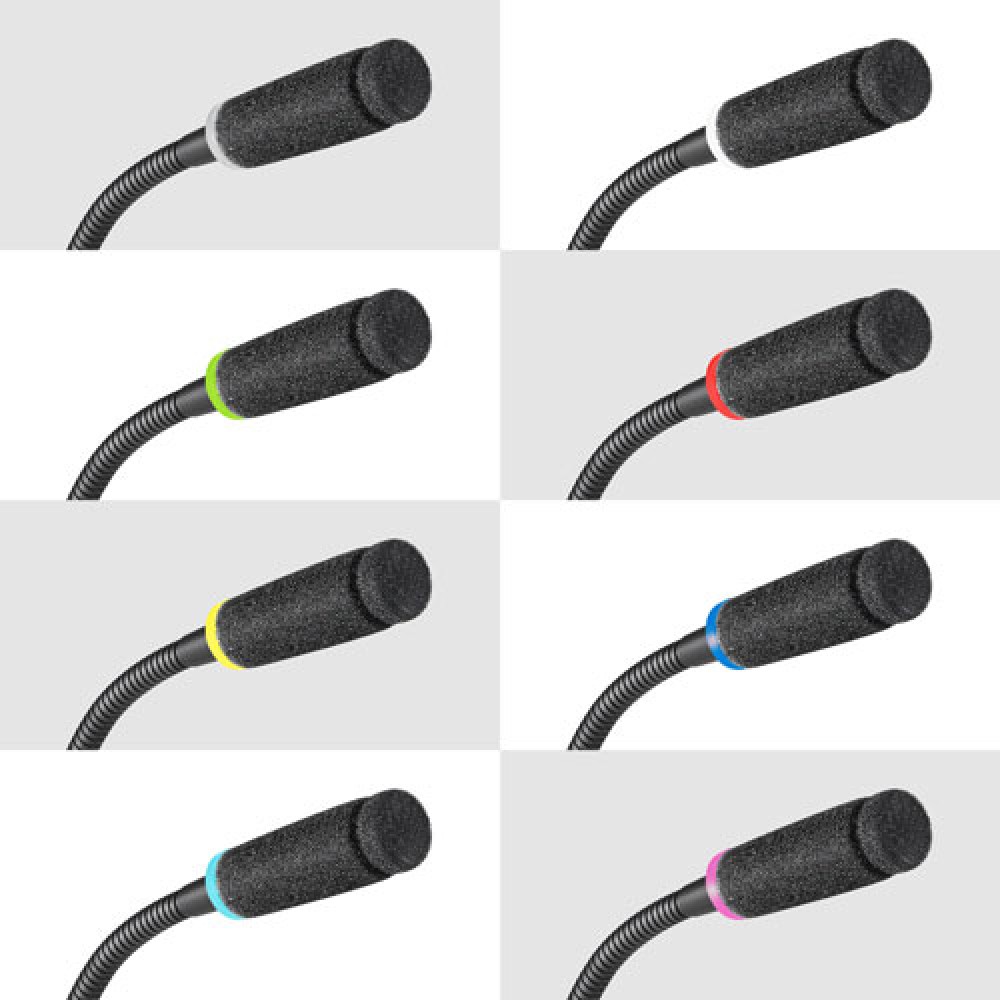

Accessories Included AT8109a foam windscreen; AT8474 universal isolation mount; AT8473 quick mount stand adapter; 5/8"-17 to 3/8"-16 threaded adapter; set screw (M2 x 2); hex wrench
Optional Interchangeable Elements ESE-Ha hypercardioid (100°)
ESE-MLa MicroLine (90°)
ESE-Oa Omnidirectional (360°)
Current Consumption 6.7 mA
