BODY
Body Material : ASH
Body Finish : Gloss Polyester
Body Shape : Stratocaster
NECK
Neck Material : Maple
Neck Finish : Gloss Urethane
Neck Shape : “U”
Scale Length : 25.5” (648 mm)
Fingerbaord Radius : 9.5” (241 mm)
Number of Frets : 21
Fret size : Vintage
Nut Material : Bone
Nut Width : 1.615” (41.02 mm)
Position Inlays : Black (Maple) or Wite Dot (Roswood), Narrow Spacing
Truss Rod : Bullet Skunk Stripe : Yes
Micro – Tilt

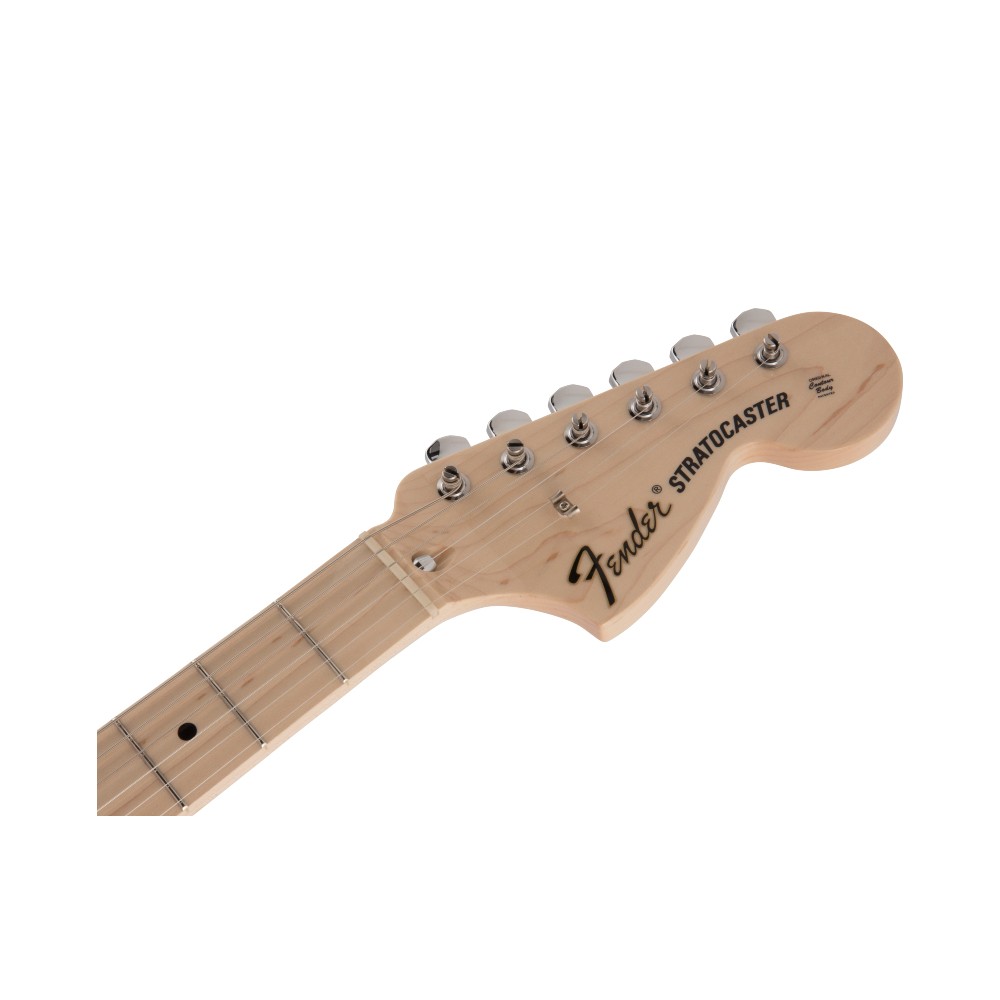

HEADSTOCK
Type : Large
Logo : CBS Black Logo
Other Decals, Front : “STRATOCASTER”, “ORIGINAL Contour Body PATENTED”

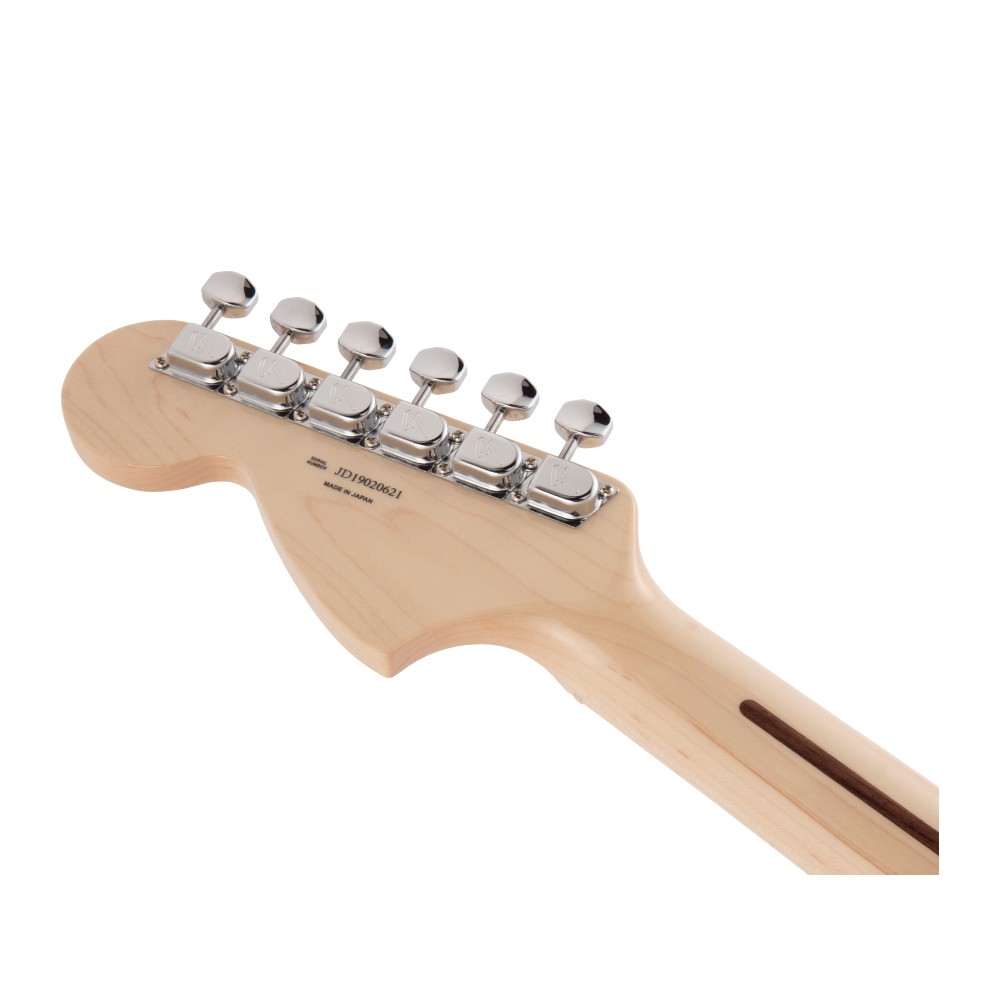

Other Decals, back : “MADE IN JAPAN”, Serial Number
ELECTRONICS
Bridge Pickup : Vintage-Style Single-Coil Strat, Straggered Poles
Middle Pickup : Vintage-Style Single-Coil Strat, Straggered Poles
Neck Pick up : Vintage-Style Single-Coil Strat, Staggered Poles
Controls : Master Volume, Tone 1. (Neck), Tone 2. (Mid)
Switching : 5-Position Blade
Configuration : SSS
HARDWARE
Bridge : 6-Saddle Vintage-Style Synchronized Tremolo
Saddles : Die-Cast CBS-Style
Tuning Machines : Fender Vintage “F” Stamped
String Tree : Wing
Hardware : Chrome
Pickguard : 3-Ply Eggshell, 11 Hole (Config. Modern); 3-Ply Black on (306)
Control Knows : Eggshell
Switch Tip : Eggshell
Tremolo Arm Tip : Eggshell
Pickup Covers : Eggshell
Neck Plate : 3 – Bolt, “F”, FENDER JAPAN”
