Mac System Requirements: Mac OS X 10.10 or 10.11 (latest update), Intel Core i5, 2 GB RAM
USB 2.0 Port, 29 GB free disk space for complete installation
Windows System Requirements: Windows 7, 8, or 10 (latest Service Pack, 32/64-bit), Intel Core 2 Duo or AMD Athlon 64 X2, 2 GB RAM
USB 2.0 Port, 29 GB free disk space for complete installation
Supported Interfaces Stand-alone
VST
Audio Units
AAX 32 and AAX 64
ASIO
CoreAudio
WASAPI

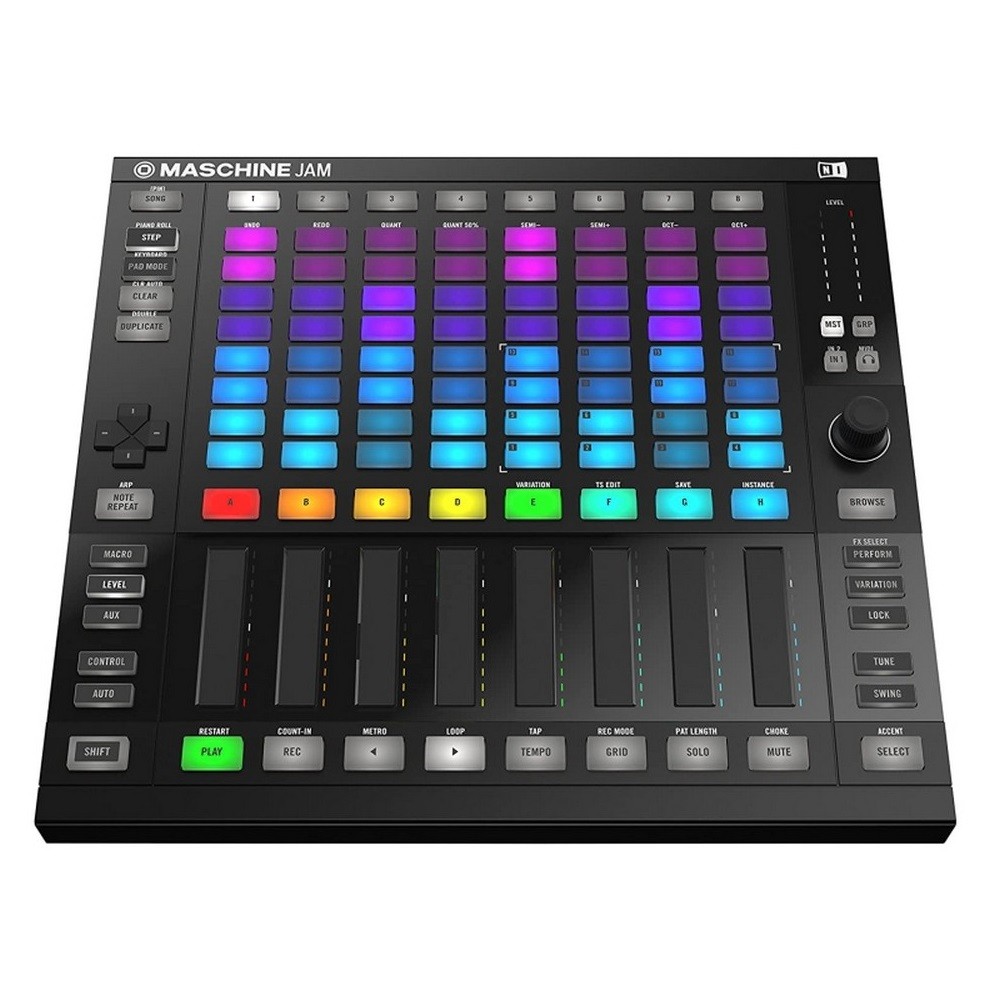

Controls 64 x Multi-color, high-quality, illuminated step matrix buttons
8 x Touch-Strips with real-time multi color indication, multi touch (Smart Strip functionality)
8 x Multi-color group buttons and 8 multicolor scene buttons
31 x Back-lit click buttons
1 x Touch sensitive push encoder
1 x Back-lit Directional Pad
1 x Foot-switch input
USB USB 2.0, 3.0
Metering Smart Strips are each fitted with multi-color LED level meters to show effect, volume, pan, aux, and layered Group macros parameters that you can map to the strips
Footswitch Input 1 x footswitch in
Kensington Security Slot Yes
Native 64-bit support for stand-alone and plug-in versions
Maschine requires activation: Activate using the serial number on the flyer inside the box
Maschine software, Maschine Factory Library, and Komplete 11 Select are provided as downloads after registration – an internet connection is required. Once installed, all products can be used offline
Stand Included stand can be mounted to the hardware
Power Bus powered
Dimensions 12.6 x 11.6 x 1.2"" / 320.0 x 294.6 x 30.5 mm
Weight 5.9 lb / 2.7 kg
