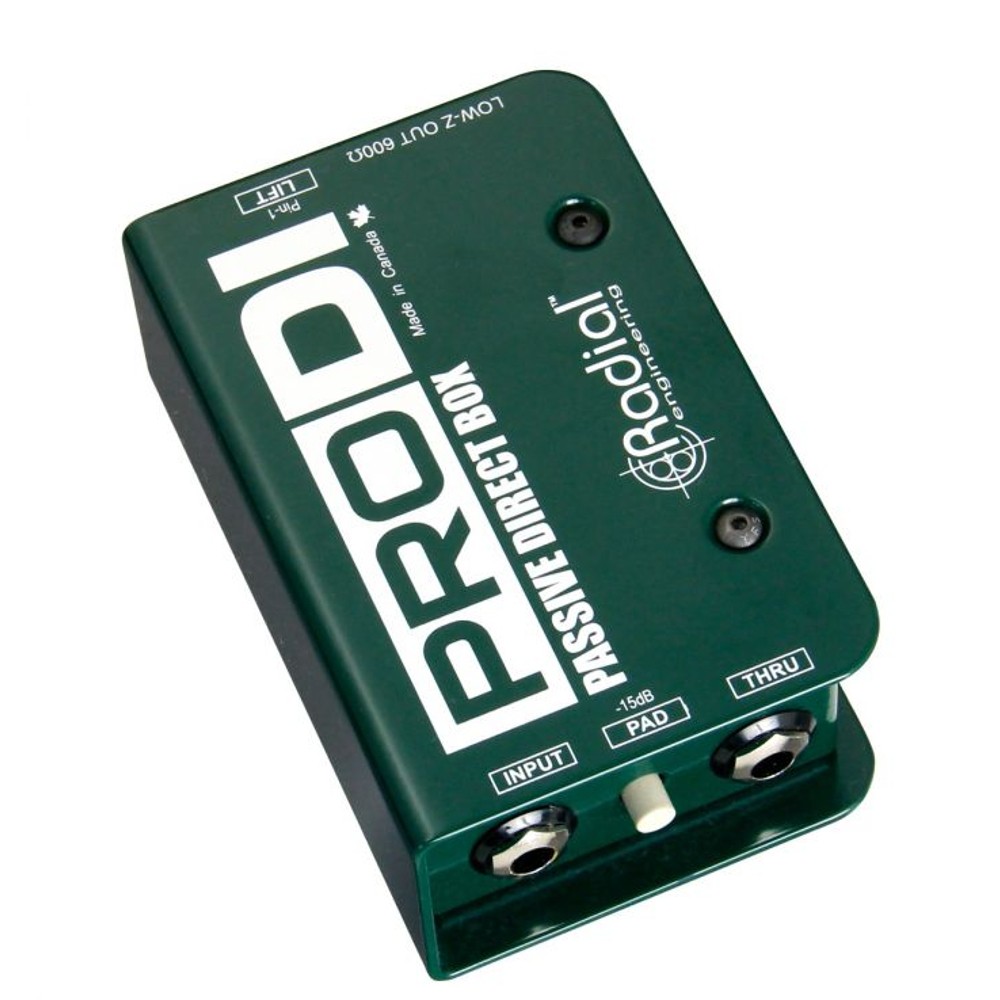

Full-range, passive direct box
Isolation transformer eliminates noise
Very low harmonic and phase distortion
Compact and rugged design
Ideal for live sound and studio.
Isolated XLR connector eliminates chassis ground potential
Custom audio transformer on input provides 100% isolation to eliminate hum- and noise-causing ground loops, while maintaining signal integrity.
Military-spec PC board, with full surface ground plane to reduce susceptibility to RF noise
High-grade switches long life, high cycle for reliable performance
14-gauge steel welded I-beam construction makes it virtually impossible to torque the PC board
15dB pad reduces the level going in from loud sources that could overload the circuit and cause distortion
Book-end design creates a protective zone around the switches & connectors, indestructible 14-gauge steel construction
Full no-slip rubber bottom pad provides mechanical isolation, electrical insulation and prevents unit from sliding around
Balanced male XLR output connector, AES standard with pin-1 ground and pin-2 hot
Lift switch lifts the ground to pin-1 on both channels.
Heavy-duty baked enamel finish for excellent durability
