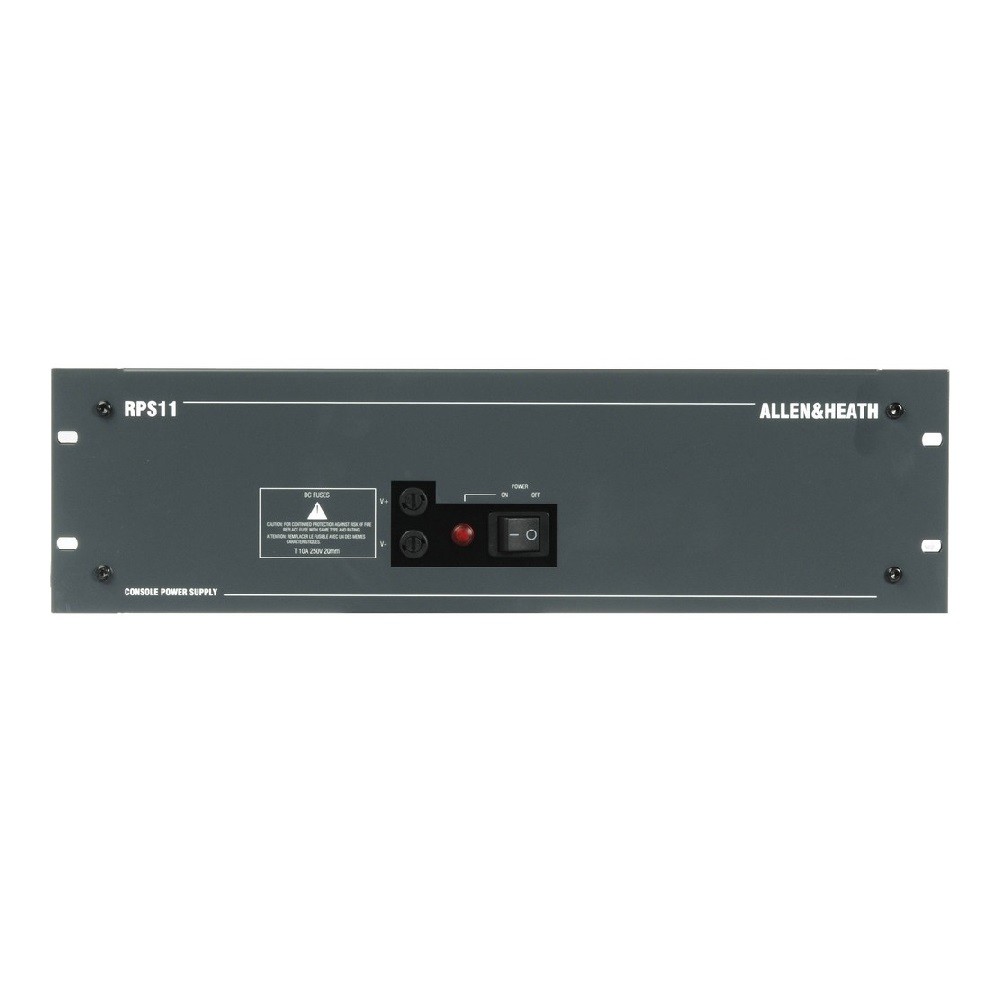

Specification:
Mains Input Voltage Settings
230/220/120/100 VAC @ 47-63 Hz
Power consumption (max.)
300W
Mains Fuse Rating DC Fuse Rating
100-120 V~ Use T 5.0A/250V V+, V- Use T 10A/250V
220-240 V~ Use T 3.15A/250V +48V Use T 2.5A/250V
Outputs
DC Voltage Rail Output Current
+16 VOLTS 5A Max.
-16 VOLTS 5A Max.
+48 VOLTS 200mA Max.
DC Output Socket Pin Connections
Pin 1 = +16 Volts
Pin 3 = -16 Volts
Pin 4 = CHASSIS 0V
Pin 5 = AUDIO 0V
Pin 10 = +48 Volts
Pins 2, 6, 7, 8, 9, = not connected
Overall Dimensions
Front Panel Chassis (Maximum External)
19 inch 3U (482mm x 133mm) Height: 135mm including feet (5.31 inches)
Width: 419mm (16.50 inches)
Depth: 235mm (9.25 inches)
Weight: 9.5Kg (21 pounds)
