System
Type of System Dual Channel VHF
RF Carrier Frequency Range 170 - 216MHz
Approx. Working Range 150 ft. typical-up to 300+ ft. line-of-sight
Overall Frequency Response 80Hz - 14kHz, +/-3dB
Total Harmonic Distortion (THD) < 0.7
Frequency Stability +/- 0.005%, crystal controlled
Modulation FM (F3E), +/-15kHz max

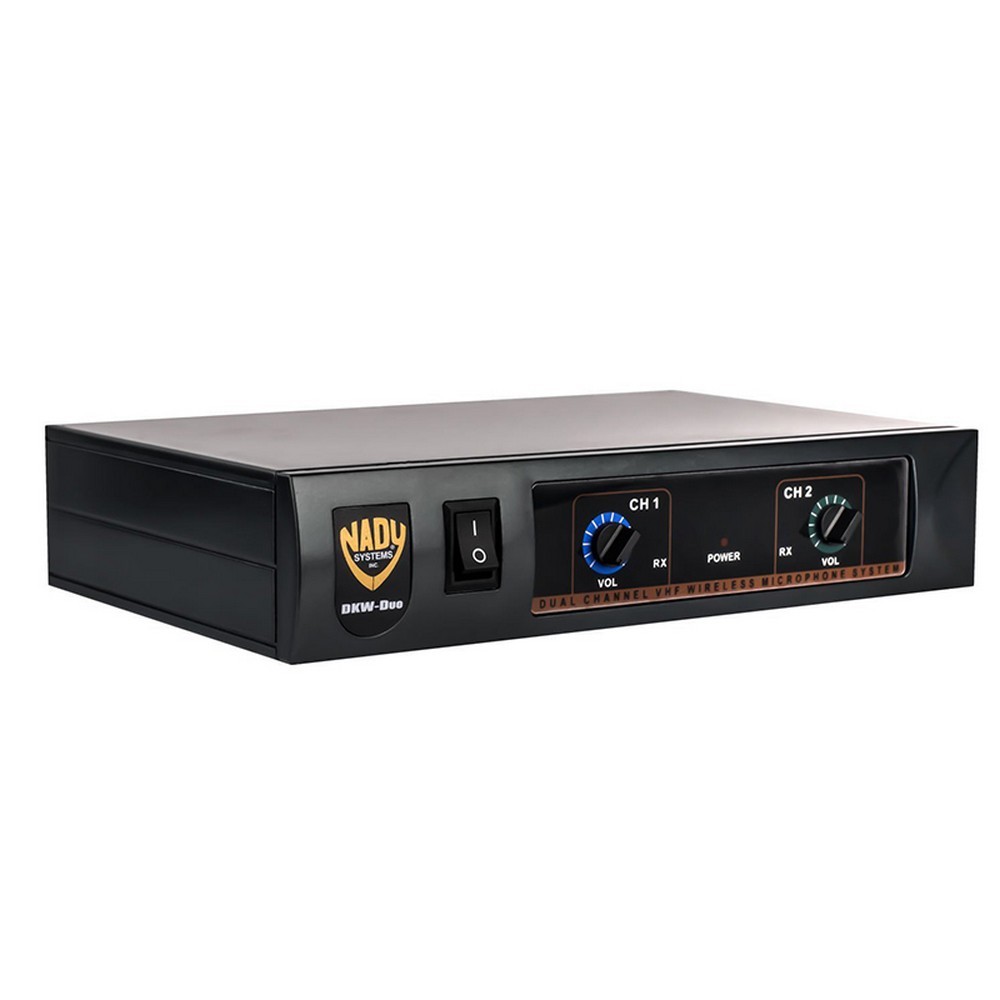

Receiver
Type of Outputs 1/4" unbalanced audio out jack, 2.1mm
Power Requirements 9V @ 120mA, nominal, AC/DC adapter supplied
Display Power On, Transmitter RF (CH A & CH B)
Antenna Type Single 15" (38 cm), collapsible
Dimensions 8.2 x 5.3 x 1.75" (20.8 x 13.5 x 4.4cm)
Weight 16.1 oz (451 g)
Transmitter
Type of Transmitter HT-Duo Handheld Microphone Transmitter
Type of Microphone DM-20D Dynamic
Polar Pattern Unidirectional (Cardioid)
Battery Type/Approx. Life Battery: 9V Alkaline
Battery Life: Up to 15 hours
Mute Switch Off/On Switch
Display Low-battery LED
Dimensions 8.9 x 1.4" (22.6 x 3.5cm)
Weight 5.4 oz (151 g)
