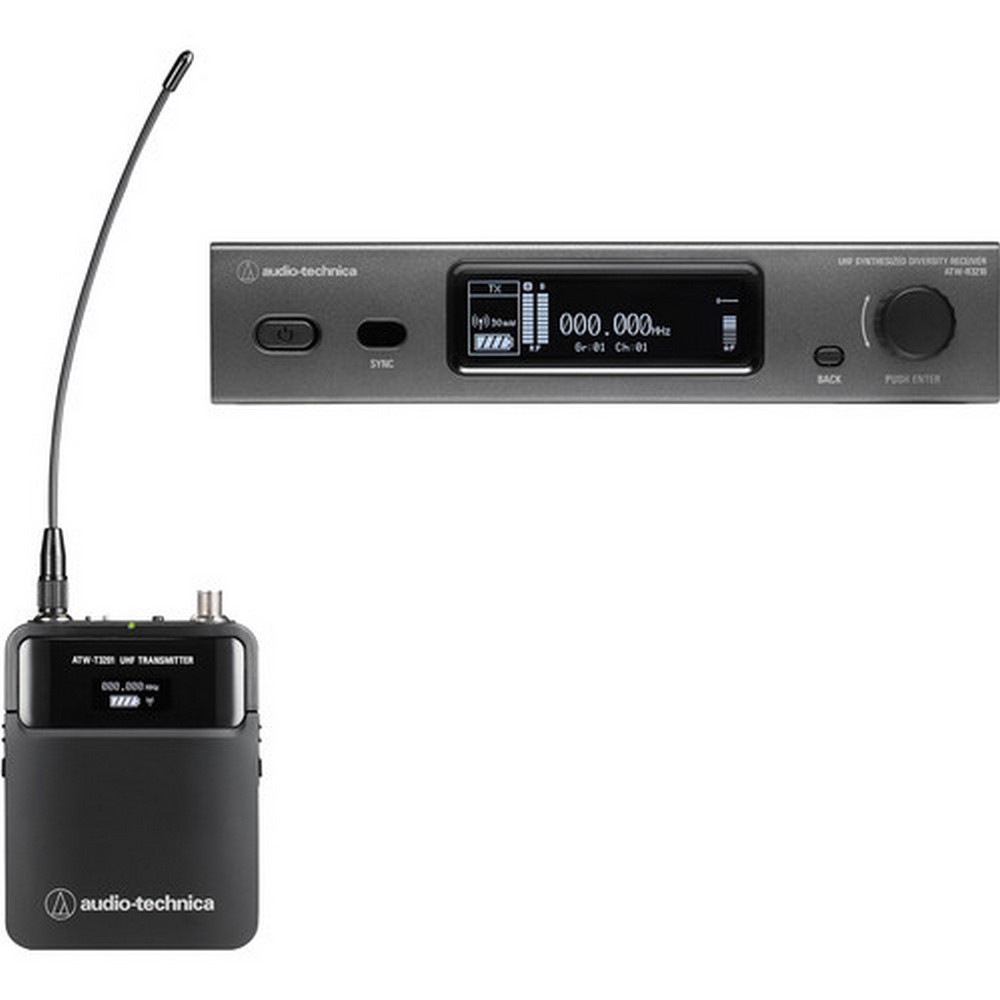

Audio-Technica ATW-3211DE2 Specifications:
System:
Wireless Transmission : Analog UHF
Number of RF Channels : 2395
Included Transmitters : 1 x Bodypack
Diversity : True Diversity
RF Frequency Band DE2:
470.125 to 529.975 MHz
RF Bandwidth: 60 MHz
Frequency Step Size : 25 kHz
Max Operating Range: 328.1' / 100 m
Max Microphones per Band : 40
Dynamic Range : 115 dB (Mic Input)
112 dB (Instrument Input)
Encryption : None
Deviation ±38 kHz
Modulation: FM
Receiver:
Form Factor: Tabletop
Mounting Options : Rackmount (with Included Hardware)
Rackmount Size : 1 RU (1/2 Rack)
Antenna : 2 x External, BNC (Rear-Mount)
Antenna Bias Voltage : 12 VDC, 160 mA (Combined)
Number of Audio Channels : 1
Audio I/O : 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TS Female Unbalanced Output
Gain Range : -60 to 0 dB (2 dB Steps)
Audio Output Level XLR Output:
+14 dBV
1/4" Output:
+8 dBV
Frequency Response : 31 Hz to 15.5 kHz (Dependent on Mic)
Approximate RF Sensitivity : 20 dBuV
Power Requirements : AC/DC Power Adapter
AC/DC Power Adapter : 12 VDC at 1 A, Center-Positive (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Display & Indicators : 1 x Backlit OLED (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status)
Dimensions : 8.3 x 1.7 x 7.5"" / 210 x 43.4 x 191 mm
Weight: 38.8 oz / 1100 g
Transmitter:
Form Factor : Bodypack
RF Output Power : 10 / 30 mW (Switchable, at 50 Ohms)
Audio I/O: 1 x Hirose cH-Style 4-Pin Male Input (Lockable)
Muting Mute Switch
Gain Range : -10 to +20 dB (2 dB Steps)
Signal Processing High-Pass Filter:
125 Hz, 12 dB/Octave Slope
Sync Method IR :
Antenna : 1 x Flexible Whip, Detachable (Beltpack)
Power Requirements : Battery
Battery Type 2 x AA (Not Included)
Approx. Battery Life Low:
9 Hours (Alkaline)
9.5 Hours (NiMH Rechargeable)
High:
8 Hours (Alkaline)
9 Hours (NiMH Rechargeable)
Display & Indicators : 1 x Backlit OLED (Battery Status, High-Pass Filter, Mute, RF Output Power)
Housing: Metal
Dimensions : 2.5 x 0.9 x 3.2"" / 64 x 23 x 82 mm
Weight : 3.6 oz / 102 g (without Batteries)
