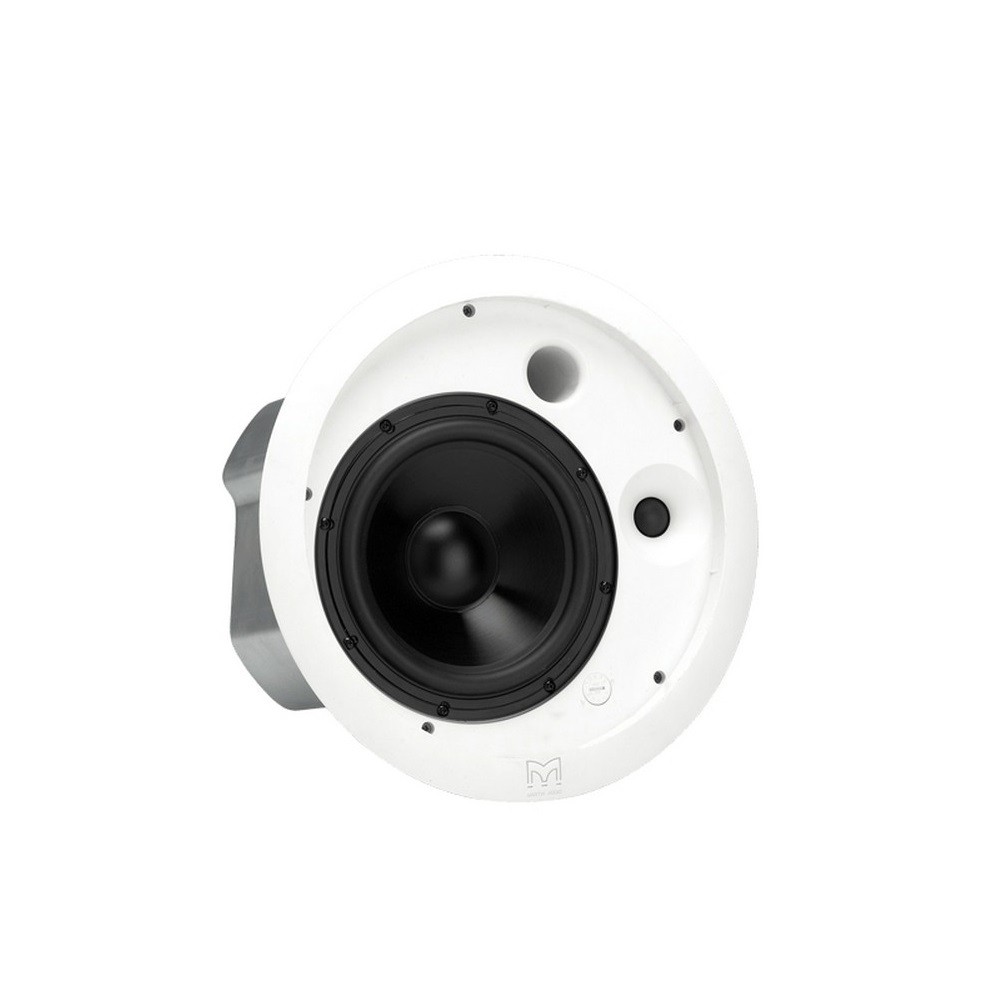

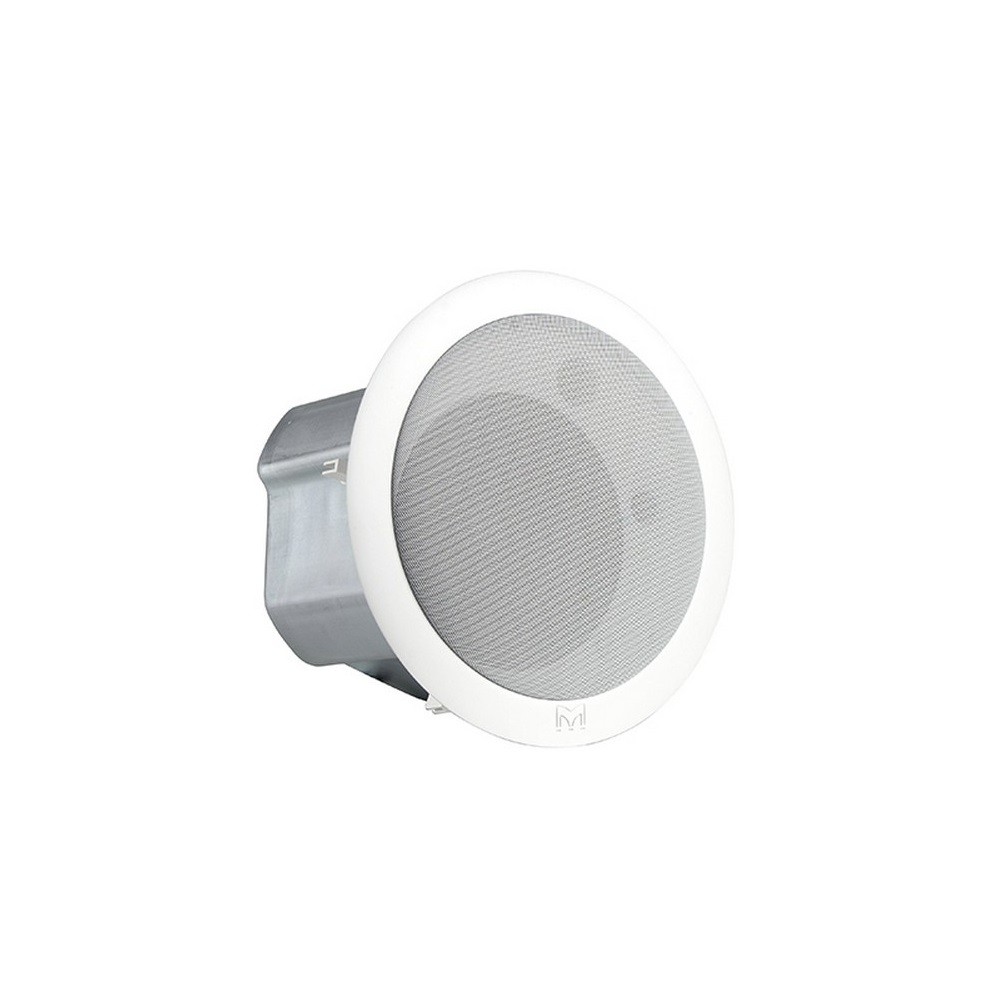

TYPE : Ceiling mounted, two-way vented enclosure
FREQUENCY RESPONSE (5) : 80Hz-18kHz ± 3dB
-10dB @ 50Hz
DRIVER :
8" (200mm) UL94V-0 PP bass driver
1" (25mm) dome tweeter
RATED POWER (2) : 125W AES, 500W peak
SENSITIVITY (8) : 91dB
MAXIMUM SPL (9) : 110dB continuous, 116dB peak
NOMINAL IMPEDANCE : 16Ω
DISPERSION (-6DB) : 90° conical up to 7kHz
CROSSOVER : 3kHz passive
ENCLOSURE : Steel backcan
FINISH : Bezel & grille – white UV resistant (Overpaintable)
Backcan – zinc plated
PROTECTIVE GRILLE : Perforated steel
CONNECTORS : Rising clamp plug and socket
ACCESSORIES (INCLUDED) :
60W 70/100V line transformer
Tile rails
C bracket
Paint mask
Cut-out template
VOLTAGE TAPS :
100V – 60W, 30W, 15W
70V – 60W, 30W, 15W, 7.5W
DIMENSIONS : (OD) 354mm x (D) 258mm
(OD) 13.9ins x (D) 10.2ins
CUT-OUT DIAMETER : 308mm (12.14 ins)
WEIGHT : 6.7kg (14.8lbs)
