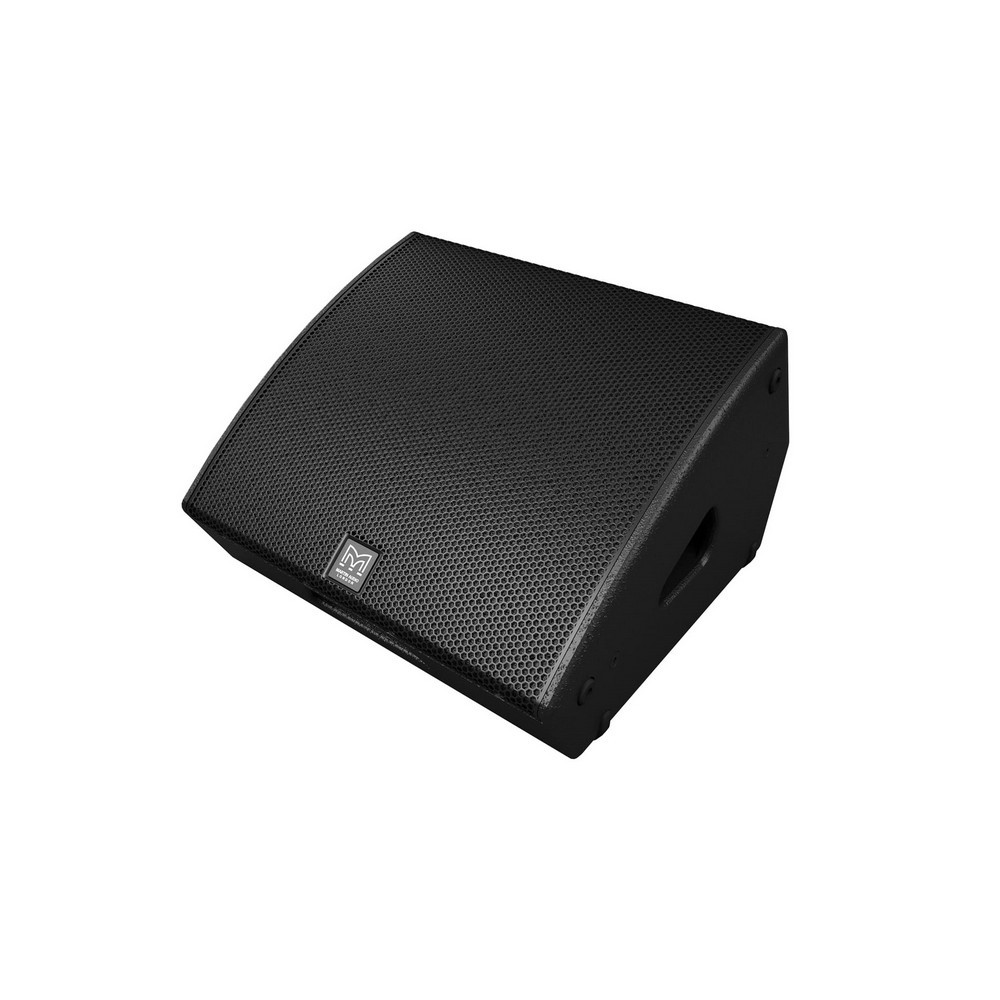

The LE100 is an extremely compact, two-way passive monitor. It features a 12 inch (300mm) LF /1 inch (25mm) exit HF Coaxial Differential Dispersion driver to distribute sound evenly over the listening plane. The LF driver section has a 2.5 inch (65mm) voice coil and an efficient motor system with an aluminium demodulating ring to minimise distortion. The coaxial HF driver utilises a 1.75 inch (44mm) polyimide dome and features a low-compression phase-plug to reduce non-linearity associated with overly-high compression ratios.

Compact, two-way stage monitor
Coaxial ‘point-source’ performance
Differential Dispersion™ technology for consistent coverage
Defined, near-rectangular coverage plane at head-height
Low-profile plywood enclosure
Integral pole-mount with removable bung
M8 rigging inserts
Multiple connectors for flexible deployment

The unique Coaxial Differential Dispersion technology employed in the LE100 produces a horizontal coverage pattern which varies from a wide 110° directly over the monitor, reducing to 60° further back. This tapering produces a near-rectangular coverage plane at head-height to maintain the sound level and balance independent of distance from the monitor.
