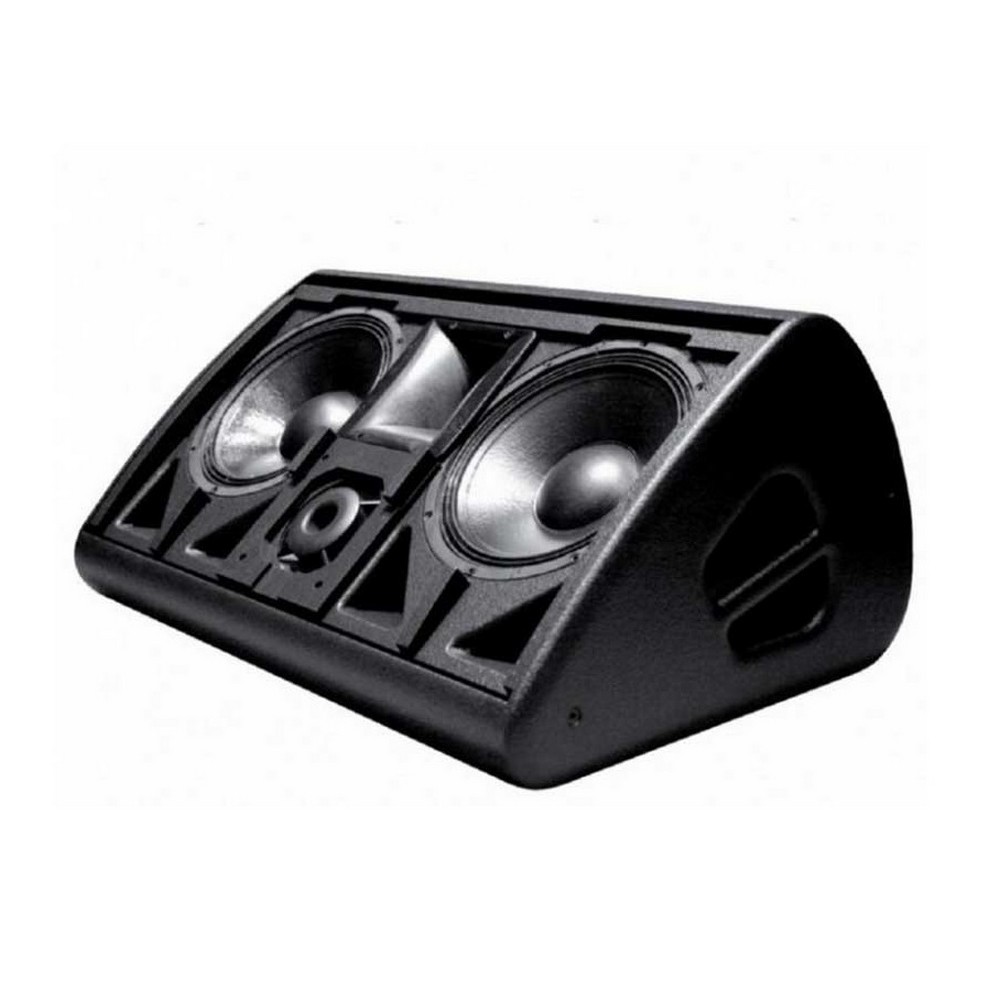

Martin Audio LE2100S Passive Stage Monitor

SKU: E-5-516

Brand:
Martin Audio

Category:
Pro-Audio

Sub-Category:
Speakers

The most powerful wedge in Martin Audio’s LE range of stage monitors, the LE2100S delivers exceptional performance in a sleek and low profile package. Perfect for use on large stages, the twin 12 inch LF drivers and 1 inch exit compression driver mounted on a differential dispersion horn, use advanced technology to increase the area covered, while maintaining constant SPL and consistent frequency response at ear height, leaving musicians free to jump around on stage as much as they like while still being delivered excellent foldback. Best used in active mode with a DX1.5 controller, crossover, limiting and EQ functions can be easily added. If you need a very high powered stage monitor, then the LE1500S delivers with style.

PHP 222,750.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

The most powerful wedge in Martin Audio’s LE range of stage monitors, the LE2100S delivers exceptional performance in a sleek and low profile package. Perfect for use on large stages, the twin 12 inch LF drivers and 1 inch exit compression driver mounted on a differential dispersion horn, use advanced technology to increase the area covered, while maintaining constant SPL and consistent frequency response at ear height, leaving musicians free to jump around on stage as much as they like while still being delivered excellent foldback. Best used in active mode with a DX1.5 controller, crossover, limiting and EQ functions can be easily added. If you need a very high powered stage monitor, then the LE1500S delivers with style.

Two 12 inch (300mm) ultra-long excursion high power, neodymium motor
bass drivers
6.5 inch (135mm) high power, phase plug loaded neodymium motor
midrange driver
1 inch (25mm) exit titanium dome, neodymium motor compression driver
Optimised constant directivity differential dispersion HF horn
Symmetrical array, 3-way, bi-amp design
Contemporary, multi-laminate ply and hardwood cabinet
Frequency response 56Hz-18kHz ±3dB, -10dB @ 48Hz
Discreet connectors
Fitted with 4 x M8 rigging inserts
Application
Very high power stage monitor
Flown infill via optional yoke

TYPE : Three-way reflex stage monitor with
symmetrically arrayed 2 x 12 inch LF, phase plug
loaded MF and differential dispersion HF horn
FREQUENCY RESPONSE : (1) 56Hz-18kHz ± 3dB
-10dB @ 48Hz
DRIVERS : 2 x 12 inch (300mm)/3 inch (75mm) voice coil, ultralong excursion, water resistant cone
6.5 inch (165mm)/2 inch (50mm) ccaw ribbon voice
coil, water resistant cone
1 inch (25mm) exit, 1.7 inch (44mm) voice coil titanium
dome HF compression driver
RATED POWER (2): LF: 800W AES, 3200W peak
MF + HF: 250W AES, 1000W peak
RECOMMENDED AMPLIFIER : MA5.2K
SENSITIVITY : (3) LF: 101dB
MF + HF: 102dB
MAXIMUM SPL : LF: 130dB continuous, 136dB peak
(calculated @ 1m) MF + HF: 126dB continuous, 132dB peak
NOMINAL IMPEDANCE : LF: 4 ohms
MF + HF: 8 ohms
DISPERSION : (-6dB) 60º - 100º horizontal (differential dispersion)
60º vertical
CROSSOVER : 606Hz active via DX1.5 or DX2 controller 3kHz passive
ENCLOSURE : 89 litres
FINISH : Textured black paint
PROTECTIVE GRILLE: Black perforated steel
CONNECTORS : 4 x Neutrik NL4
FITTINGS: 4 x skids
4 x M8 inserts
DIMENSIONS: (W) 826mm x (H) 385mm x (D) 582mm
(W) 32.5ins x (H) 15.2ins x (D) 22.9ins
WEIGHT : 39.5kg (87lbs)
