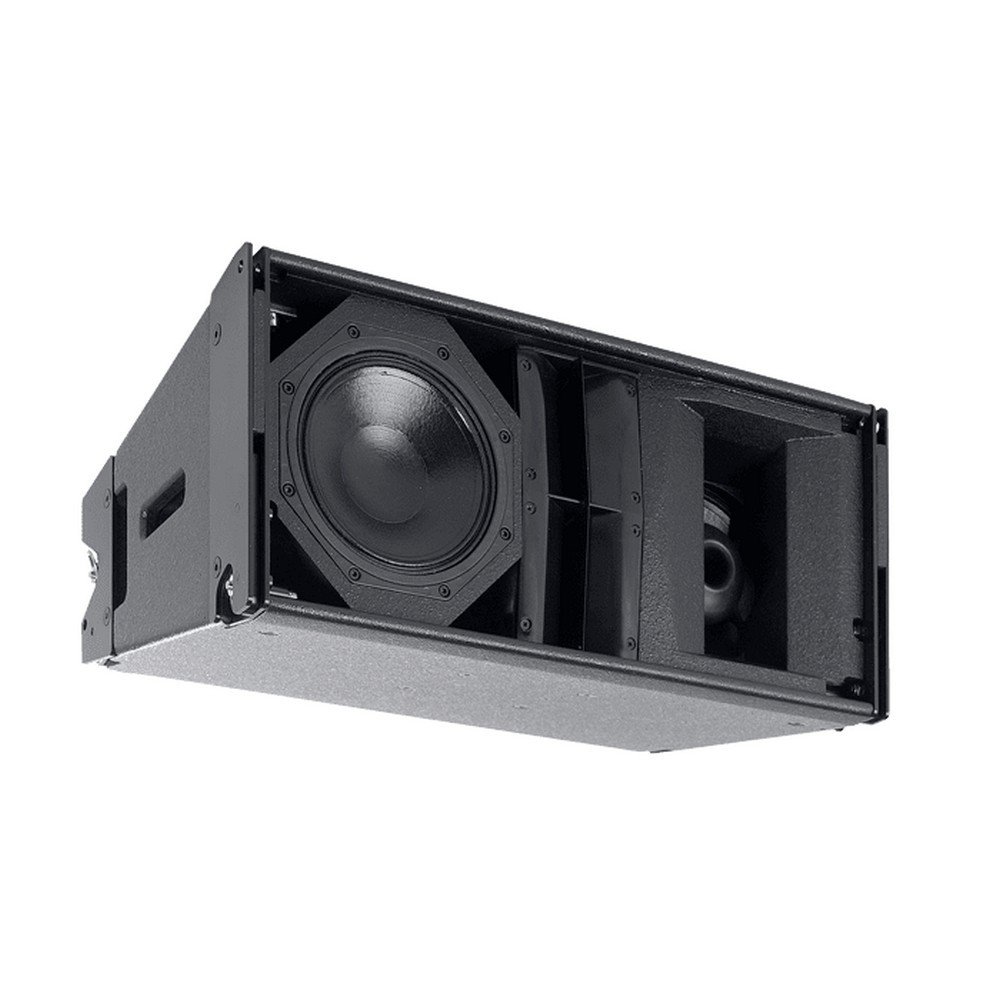

Martin Audio W8LMD Three-way Mini Vertically Arrayable Enclosure

SKU: E-5-706

Brand:
Martin Audio

Category:
Pro-Audio

Sub-Category:
Speakers

The Martin Audio W8LMD is a mini, wide-dispersion vertically arrayable enclosure. It can be used individually and in small quantities for short to medium throw applications (up to 30 metres) as well as a downfill element for the W8LM. Its 20° vertical dispersion requires fewer cabinets to cover the same area as a conventional line array element, yet it still benefits from the smooth, predictable coverage of a vertically coupled system.

PHP 294,100.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

The Martin Audio W8LMD is a mini, wide-dispersion vertically arrayable enclosure. It can be used individually and in small quantities for short to medium throw applications (up to 30 metres) as well as a downfill element for the W8LM.

Stand alone vertically arrayable enclosure
Line array downfill element
Consistent 120º (-6dB) horizontal mid and HF pattern control
20º (-6dB) vertical dispersion
Tripod mountable singularly or in pairs
Amplitude shading switch
Passive or Bi-Amp format
Compatible with WMX, WLX, WSXa, WS2A & WS218 subwoofers

TYPE : Three-way, active/passive, mini downfill line array element
FREQUENCY RESPONSE : 60Hz-18kHz ± 3dB
DRIVERS: LF + MF SECTION
8 inch (200mm)/2 inch (50mm) voice coil, reflex-loaded direct radiator
8 inch (200mm)/2 inch (50mm) voice coil, neodymium driver, front horn loaded, rear reflex loaded
DRIVERS: HF SECTION 2 x 1 inch (25mm) exit HF compression drivers, horn loaded
RATED POWER (1) :
LF + MF: 400W AES, 1600W peak
HF: 75W AES, 300W peak
FR: 400W AES, 1600W peak
SENSITIVITY (2) :
LF + MF: 99dB
HF: 104dB
FR: 98dB rising to 103dB at HF
MAXIMUM SPL (3) :
LF + MF: 125dB continuous, 131dB peak
HF: 123dB continuous, 129dB peak
FR: 124dB continuous, 130dB peak
NOMINAL IMPEDANCE :
LF + MF: 12 ohms
HF: 12 ohms
FR: 12 ohms
DISPERSION (-6DB) :
120º horizontal (down to 750Hz)
20º vertical
140º horizontal (down to 650Hz) @ -10dB
CROSSOVER :
300Hz passive, 2.2kHz active or passive
Shading control switch – rear mounted
ENCLOSURE : Vertical trapezoid with 10º wall angle, multi- laminate birch ply construction
FINISH : Textured black paint
PROTECTIVE GRILLE : Black perforated steel
CONNECTORS : 2 x Neutrik NL4
FITTINGS :
Proprietary rigging system
2 x pocket handles each side
4 x M8 inserts for externally mounted top hat fitting
DIMENSIONS :
(W) 620mm x (H) 284mm x (D) 400mm
(W) 24.4ins x (H) 11.2ins x (D) 15.8ins
WEIGHT : 30kg (66lbs)
